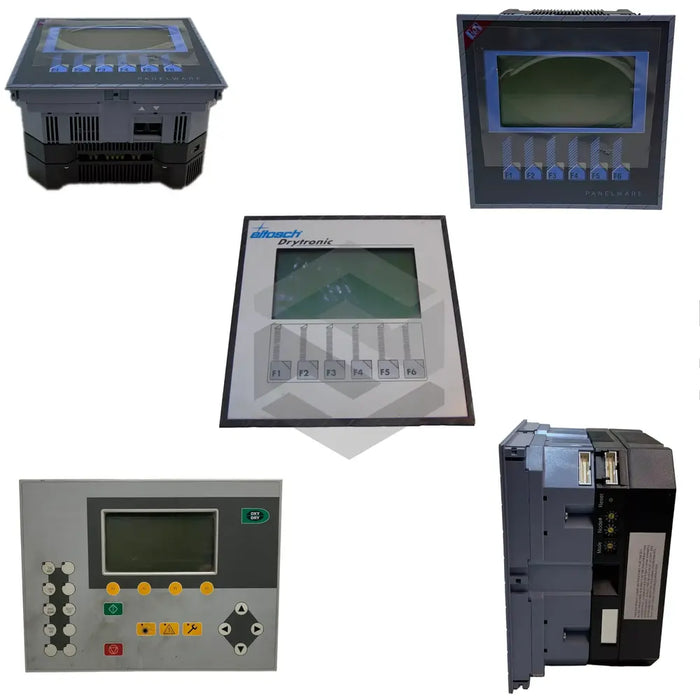

S image of 4D1166.00-590

4D1166.00-590

by B & R Automation
$2,942.71 - $2,942.71
$2,942.71
$2,942.71 - $2,942.71
$2,942.71

In Stock, Ships 1 - 3 Days

The 4D1166.00-590, produced by B & R Automation, is a versatile graphic display panel optimized for industrial settings. It features a high-resolution LCD capable of displaying 16 lines by 40 characters in text mode and a 128 x 240-pixel image in graphics mode. The panel's CFL backlighting ensures effective viewing under varied lighting. Built with an IP65-rated aluminum front, it resists dust and moisture in harsh environments. Suitable for operation within 0 to 50°C and storage within -20 to +60°C, it handles humidity levels up to 85% RH. The panel includes 16 LED-backlit function keys, 12 numeric keys, and 14 programmable keys, plus five cursor keys for navigation. Its power consumption is minimal at 150mA with a 24V DC supply. Compliant with IEC60068-2-27 and IEC 60068-2-6 standards, it withstands shocks of 150m/s² and vibrations between 10 to 150 Hz, ensuring durability.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

B & R Automation

Model

4D1166.00-590

Display Type

LCD with text and graphics modes

Text Mode

16 lines of 40 characters

Graphics Mode Resolution

128 x 240 pixels

Backlighting

CFL

Front Panel Material

Aluminum

Ingress Protection

IP65

Operating Temperature Range

0 to 50C (32 to 122F)

Storage Temperature Range

-20 to 60C (-4 to 140F)

Operating Humidity Range

20% RH to 85% RH non-condensing

Storage Humidity Range

20% RH to 90% RH non-condensing

Keypad Composition

16 function keys with LEDs, 12 numeric keys, 14 programmable keys with LEDs, 5 cursor keys

Power Consumption

150mA at 24V DC

Shock Resistance

IEC60068-2-27, 15g or 150m/s_ for 11ms on three axes

Vibration Resistance

IEC 60068-2-6, 1g from 10 to 58Hz, 9.8m/s from 58 to 150Hz
