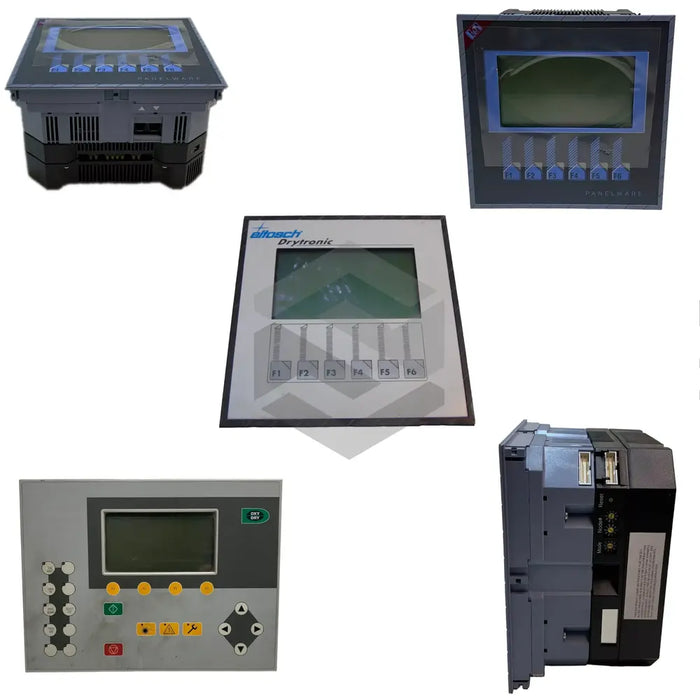

series image of 4D1166.00-K04

4D1166.00-K04

by B & R Automation
Request a quote
The 4D1166.00-K04 LCD graphic display panel by B & R Automation is a high-resolution, vertically oriented display built for industrial applications demanding reliability and visual clarity. It features a resolution of 128 x 240 pixels, allowing for clear and precise image output, and it supports 16 lines by 40 characters in text mode for extensive data display. The panel includes a miniature fluorescent lamp for optimal visibility in diverse lighting conditions. Measuring 214mm x 328mm x 38.6mm, it boasts an IP65-rated aluminum front capable of withstanding dust and water exposure, adhering to IEC shock and vibration standards. The intuitive interface includes 16 backlit function keys, a 12-key numeric keypad, and 14 programmable keys, enhancing user control. It operates within -20°C to 60°C, drawing just 135mA from a 24V DC supply, making it ideal for power-sensitive settings.
30 Day Warranty
Technical Specifications
  • Manufacturer: B & R Automation
  • Model: 4D1166-00-K04
  • Orientation: Vertical
  • Resolution: 128 x 240 pixels
  • Text Mode: 16 lines by 40 characters
  • Backlighting: Miniature Fluorescent Lamp (CFL)
  • Dimensions: 214mm wide x 328mm tall x 38.6mm deep
  • Front Panel Rating: IP65
  • Material: Aluminum
  • Shock Resistance: IEC60068-2-27 (15g equivalent, 150m/s², 11ms, 3 axes)
  • Vibration Resistance: IEC60068-2-6 (1g equivalent, 10-58Hz, 0.075mm amplitude, 9.8m/s², 58-150Hz, 20 cycles per axis)
  • Keys: 16 function keys with backlit LEDs, 12-key numeric keypad, 14 user programmable keys with backlit LEDs, 5 cursor control navaids
  • Operating Temperature: 0°C to 50°C
  • Storage Temperature: -20°C to 60°C
  • Humidity Range: Operating: 20%-85%, Storage: 20%-90% RH non-condensing
  • Power Supply: 24Vdc
  • Current Draw: 135mA
