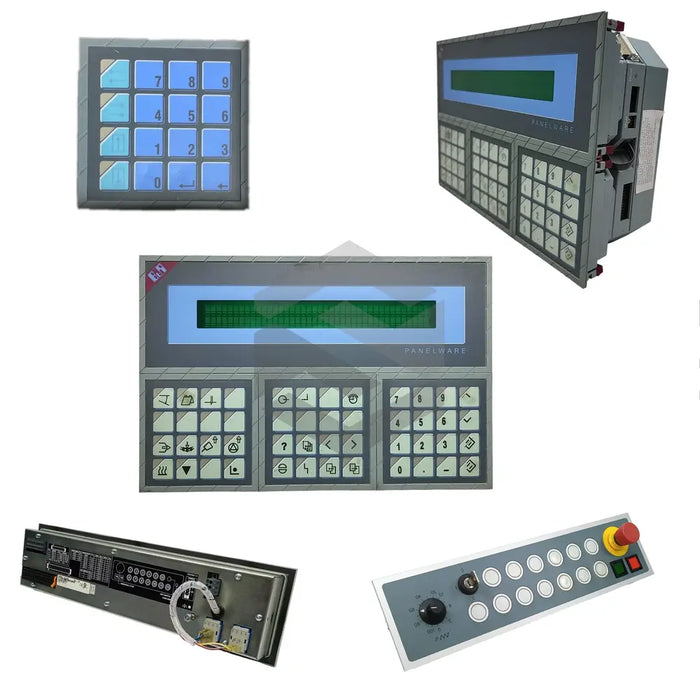

series image of 4E0011.01-090

4E0011.01-090

by B & R Automation
$3,262.07 - $3,262.07
$3,262.07
$3,262.07 - $3,262.07
$3,262.07
In Stock, Ships 3 - 5 Days
The 4E0011.01-090, manufactured by B & R Automation, is a versatile industrial component suitable for diverse applications. It features 16 customizable short-stroke keys and 16 yellow LEDs for enhanced visibility and status indication. Designed for operation between 0 to 50°C (32 to 122°F), the unit can be stored within a temperature range of -20 to 60°C (-4 to 140°F) and operates reliably in humid conditions (5 to 95% non-condensing). This device adheres to IEC60068-2-27 standards, withstanding mechanical shocks of 15g (150 m/s²) over 11 ms across three axes, and meets IEC60068-2-6 standards for vibration resistance. It requires a power supply of 24 VDC, drawing 1.5 mA with an additional 3 mA per illuminated LED, facilitating efficient integration into systems. The 4E0011.01-090 is designed for compatibility with programmable logic controllers, industrial PCs, power panels, and uninterruptible power supplies.
30 Day Warranty
Technical Specifications
  • Manufacturer: B & R Automation
  • Model: 4E0011.01-090
  • Keys: 16 short-stroke keys
  • Key Customization: User-labelable
  • LEDs: 16 yellow LEDs
  • Operating Temperature Range: 0 to 50 C (32 to 122 F)
  • Storage Temperature Range: -20 to 60 C (-4 to 140 F)
  • Operating Humidity: 5 to 95% non-condensing
  • Storage Humidity: 5 to 95% non-condensing
  • Shock Resistance: IEC60068-2-27 standard, 15g equivalent, 150 m/sec², 11 msec impacts, three axes
  • Vibration Resistance: IEC60068-2-6 standard, 1g equivalent, 10-58 Hz, 0.075 mm displacement
  • Power Supply: 1.5 mA 24 VDC
  • LED Power Consumption: 3 mA per LED
  • Compatibility: Programmable logic controllers (PLCs), industrial PCs, power panels, uninterruptible power supplies
