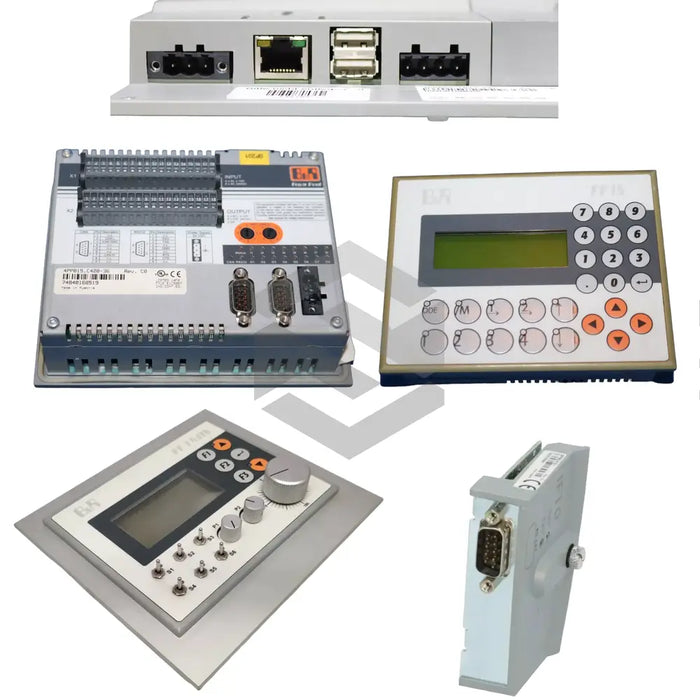

S image of 4PP015.0420-01

4PP015.0420-01

by B & R Automation
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The 4PP015.0420-01 Power Panel from B & R Automation is a robust device in the Power Panel 15 series. It operates on a 24 VDC power supply and offers 16 keys alongside 16 digital inputs and outputs. Equipped with an English/Katakana character set, it features a black and white LCD with a resolution of 4 x 20 characters. The panel houses a processor with an instruction cycle time of 0.8 microseconds and includes 300 KB of SRAM, 448 KB of system FlashPROM, and 1024 KB of user FlashPROM. A 950 mAh lithium battery supports its real-time clock with 1-second resolution. The panel supports a non-isolated RS232 interface with a 15-meter range at 19200 bits/s. Additional features include an IP65 front rating, voltage monitoring (triggering NMI below 15 VDC), a CAN interface, two event counters, and short-circuit-protected high-side digital outputs with an 8 A current capacity.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

B & R Automation

Product Line

Power Panel 15

Model

4PP015.0420-01

Power Supply

24 VDC

Number of Keys

16

Digital Inputs/Outputs

16

Character Set

English/Katakana

Display Type

Black and White LCD

Screen Resolution

4 x 20 characters

Processor Cycle Time

0.8 microseconds

User RAM

300 kilobytes SRAM

System PROM

448 kilobytes FlashPROM

User PROM

1024 kilobytes FlashPROM

Battery Type

Lithium

Battery Capacity

950 mAh

Watchdog

Hardware

Real-Time Clock Resolution

1 second

Operating System

PP01x

Weight

0.5 kilograms

IP Rating

IP65 (front side)

Interface

RS232 with 9-pin DSUB plug

Interface Isolation

Not electrically isolated

Distance Rating

15 meters per 19200 bits/s

System Bus for Expansions

None

Voltage Monitoring

NMI triggers below 15 VDC

CAN Interface

1

Event Counters

2

Gate/Period Measurements

2

Digital Outputs Type

High side driver

Total Current

8 A

Output Protections

Short-circuit and overload protection
