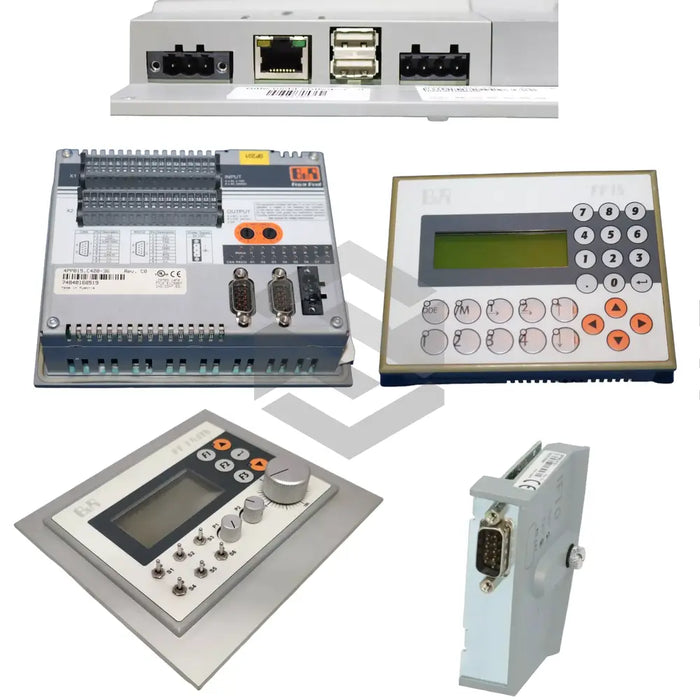

S image of 4PP015.0420-36

4PP015.0420-36

by B & R Automation
$3,808.55 - $5,157.85
$3,808.55
$3,808.55 - $5,157.85
$3,808.55
The 4PP015.0420-36, produced by B & R Automation, is part of the Power Panel 15 series, featuring a 4x20 character non-color LCD display with English/Katakana character support and LED indicators for status and diagnostics. It includes 16 keys, 12 of which are LED-equipped. This unit has a processor with a 0.8 microsecond average instruction cycle time and is powered by a 950 mAh lithium battery. It incorporates a real-time clock and hardware watchdog but does not support system bus expansion. Operating on PP01x OS version 2.36 or higher, it offers 300 KB of SRAM and 1024 KB of FlashPROM. RS232 interface support is provided with a 9-pin DSUB port for 115.2 kbps transfer over 15 meters. Features include two 32-bit event counters, one incremental encoder, eight digital outputs with 0.5 A nominal output and overload protection, and four differential inputs with 150 µs conversion time and 20 MΩ impedance.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product

4PP015.0420-36

Manufacturer

B & R Automation

Series

Power Panel 15

Display Type

Non-color LCD

Resolution

4 x 20 characters

Character Set

English/Katakana

Status LEDs

Yes

Keys

16 (12 with LEDs)

Processor Cycle Time

0.8 microseconds

Battery Capacity

950 mAh

Watchdog

Hardware

Real-time Clock

Yes

System Bus

No

Operating System

PP01x version 2.36 or higher

Standard Memory

300 kilobytes SRAM

Flash Memory

1024 kilobytes FlashPROM

Interface

RS232

Port Type

Non-electrically isolated 9-pin DSUB

Max Transfer Speed

115.2 kilobits per second

Interface Distance

15 m/19200 bit/s

Event Counters

2

Counter Size

32 bits

Max Input Frequency (Counters)

50 kilohertz

Incremental Encoder

1

Max Input Frequency (Encoder)

20 kilohertz

Digital Output Channels

8

Nominal Output Current

0.5 A

Total Current Rating

4 A

Max Switching Frequency

100 Hz

Protective Circuit

VDR internal

Overload Protection

Yes

Differential Input Channels

4

Conversion Time

150 microseconds

Input Impedance

20 MW.
