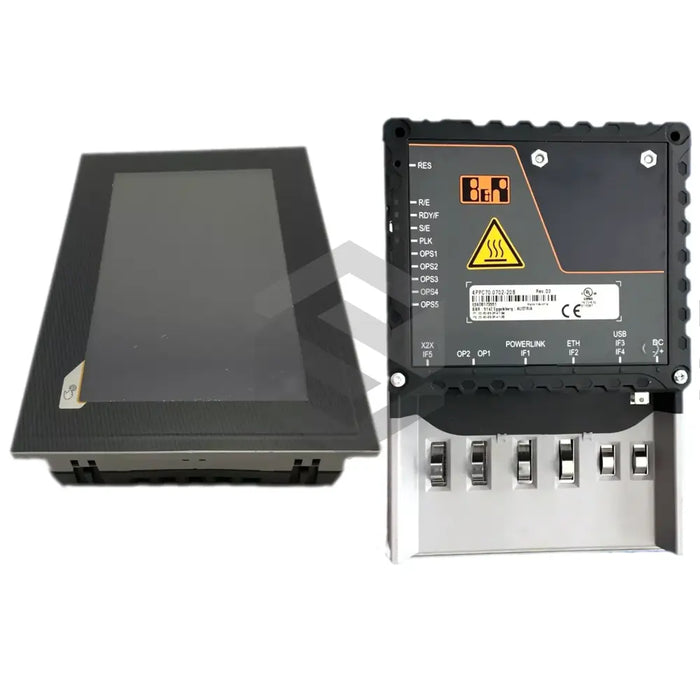

S image of 4PPC70.101G-20B

4PPC70.101G-20B

by B & R Automation
$4,064.78 - $5,910.54
$4,064.78
$4,064.78 - $5,910.54
$4,064.78
The 4PPC70.101G-20B power panel, manufactured by B & R Automation, is a versatile device that integrates both HMI and PLC functionalities for automation systems. Designed to fit seamlessly into diverse applications, it features a compact build with a low installation depth and intelligent cable management. The panel includes connectivity options such as 1x POWERLINK, 1x Ethernet 10/100 Mbit/s, 1x X2X Link, and 2x USB 2.0 interfaces. Its fan-less, maintenance-free design is enhanced by a high-resolution 10.1" WSVGA display with an analog resistive touch screen for optimal visibility. Powered by an energy-efficient Intel Atom 333 MHz processor and 256 MB DDRAM, it operates on Automation Runtime AR 4.08, supporting up to eight task classes. With IP 65 protection on the front and IP 20 on the rear, it is suitable for demanding environments within a temperature range of 0 to 50°C. The unit, weighing 1.05 kg, complies with CE, UL, and EAC standards, operating on a 24 VDC supply at a maximum power consumption of 15 W.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product

4PPC70.101G-20B

Manufacturer

B & R Automation

Design

Compact

Installation Depth

Low

Performance

Reliable

Functionality

HMI and PLC

Connectivity

1x POWERLINK, 1x Ethernet 10/100 Mbit/s, 1x X2X Link, 2x USB 2.0

Operations

Fan-less

Display

10.1-inch, 1024 x 600 WSVGA, Analog Resistive Touch Screen

Processor

Intel Atom 333 MHz

RAM

256 MB DDRAM

Operating System

Automation Runtime AR 4.08

Task Classes

Up to eight

Ingress Protection

IP 65 (Front), IP 20 (Rear)

Operating Temperature

0 to 50 degrees C

Certifications

CE, UL, EAC

Weight

1.05 kg

Dimensions

276 mm x 172 mm x 51 mm

Supply Voltage

24 VDC

Power Consumption

15 W

Applications

Automation Systems

Navigation

High Clarity

Installation

Flexible
