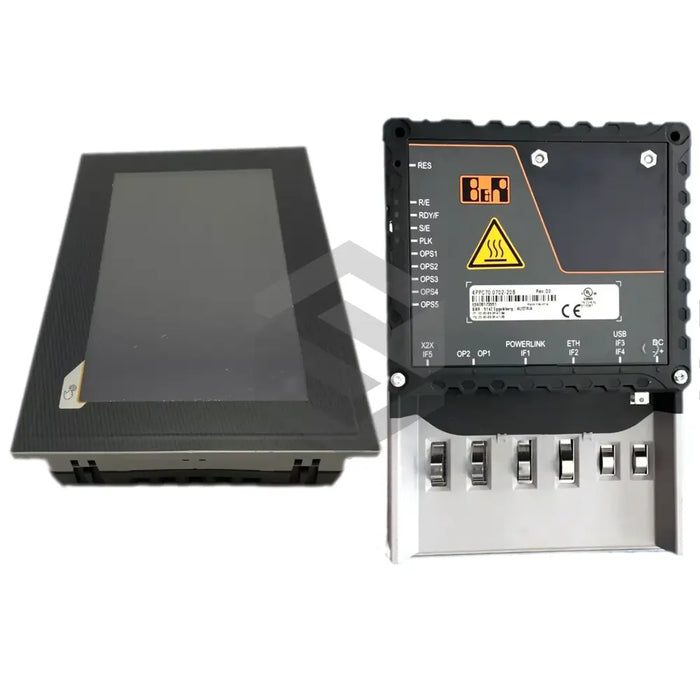

4PPC70.101G-23W
The 4PPC70.101G-23W operator panel from B & R Automation is a sophisticated component within the 4PPC Power Panels series, purpose-built for control and visualization in industrial automation. It integrates a high performance Intel ATOM 333 MHz processor, reliable 256 MB of DRAM, and ample storage with a 2 GB onboard flash drive. This panel is designed primarily to address HMI and PLC needs, combining multiple interface capabilities within a compact design, making it ideal for precise monitoring and operational control in complex industrial environments.
Engineered with advanced technical features, the panel offers a robust 10.1 inch analog resistive touch screen featuring a high resolution of 1024 x 600 that ensures clear and detailed visual output. Its cooling system is fanless, promoting quiet and efficient operation while keeping power consumption low at a maximum of 14.5 W. The device operates at a nominal voltage of 24 VDC -15% / +20%, and incorporates connectivity via 1 x POWERLINK, 1 port Ethernet (10BASE-T/100BASE-TX), 1 x CAN bus, 1 x RS485, 1 x X2x Link, and 2 x USB 2.0 interfaces.
Additional attributes that enhance this panel’s operational reliability include the integrated LED indicators such as supply voltage OK, operating status, module status, Ethernet, and POWERLINK signals, which provide real-time diagnostics. The inclusion of a modest 32 kB FRAM further stabilizes system operations by ensuring quick data processing and memory reliability. Overall, this panel combines robust construction with precise technical specifications, offering a dependable and versatile solution for demanding industrial applications where performance and efficiency are paramount.
