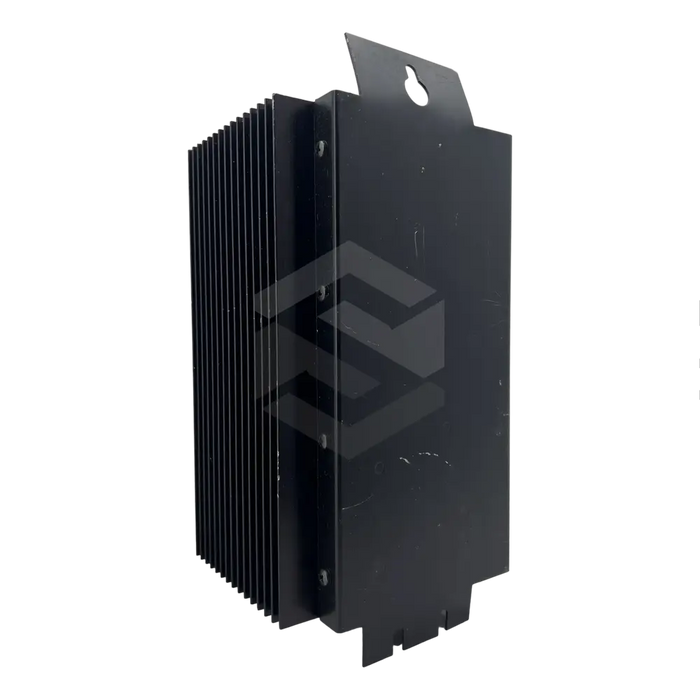

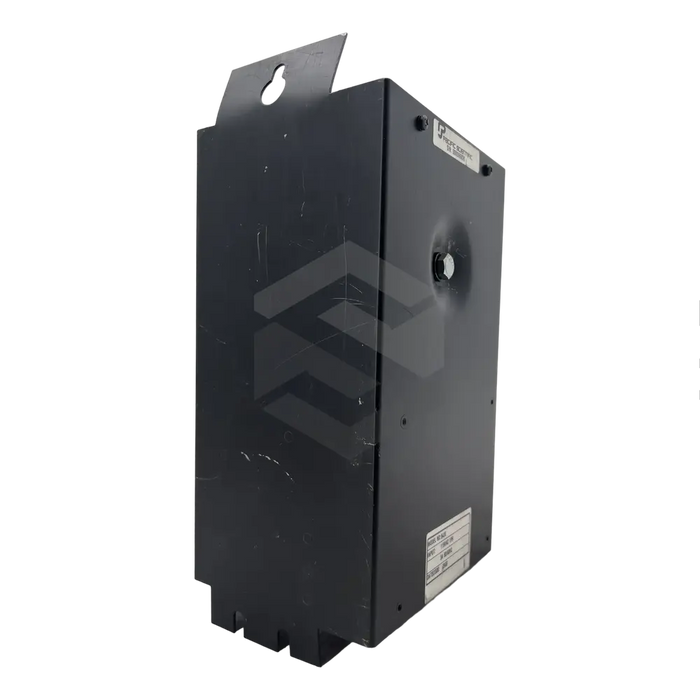

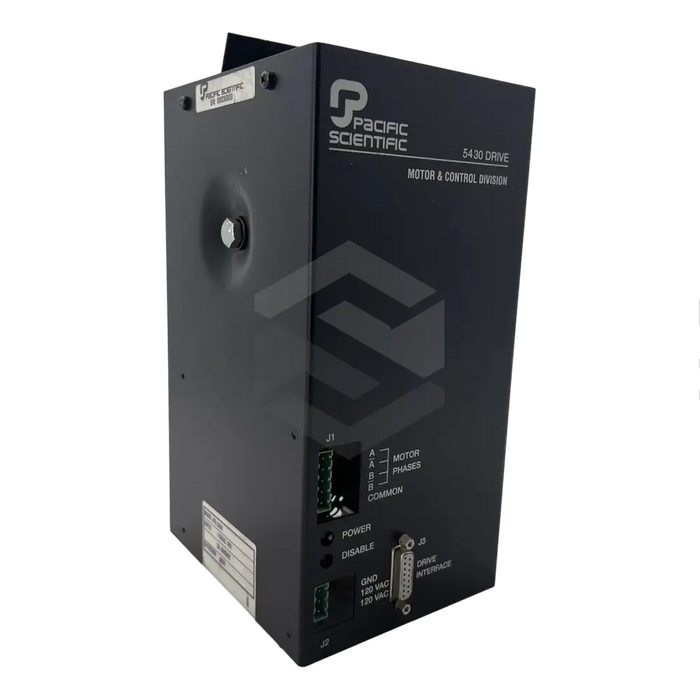

product Main (Front Left) image of 5430

5430

by Pacific Scientific
$1,480.49 - $1,480.49
$1,480.49
$1,480.49 - $1,480.49
$1,480.49
In Stock, Ships Today
The Pacific Scientific 5000 Series Motor Drives are smart motion system drivers produced for optimal performance and reliability, offering easily accessible software control. These stepper motor drives provide diverse power supply configuration options including a peak 7.1 Amps current, an internal power supply of 65 Volts DC at 5 Amps RMS, and a user-provided power range of 18 to 75 Volts DC. Designed to work with Pacific Scientific's Sigma series of hybrid stepper motors, the 5430 series can transform step and directional inputs into the required motor winding currents, operating at 120 volts AC. Incorporating two main components, the power supply and the driver unit, the 5430 uses pulse width modulation (PWM) for motor control and a bipolar chopper for winding current control. With its advanced design, the system precludes mid-range instability, modifying output behaviour through an electronic switching mechanism based on the characteristics of the incoming pulse train.
30 Day Warranty
Technical Specifications
  • Manufacturer: Pacific Scientific
  • Product Series: 5000 Series
  • Design: Stepper Motor Drives
  • Peak Current: 7.1 Amps
  • Integral Power Supply: 65 Volts DC, 5 Amps RMS
  • User Provided Power: 18 to 75 Volts DC
  • Operation Voltage: 120 volts AC
  • Output: 5 amps with 65-volt DC bus
  • Compatible With: Sigma range of hybrid stepper motors
  • Components: Power Supply, Driver Unit
  • Control Type: PWM (Pulse Width Modulation)
  • Frequency: 20 KHz
  • Additional Feature: Eliminates mid-range frequency
