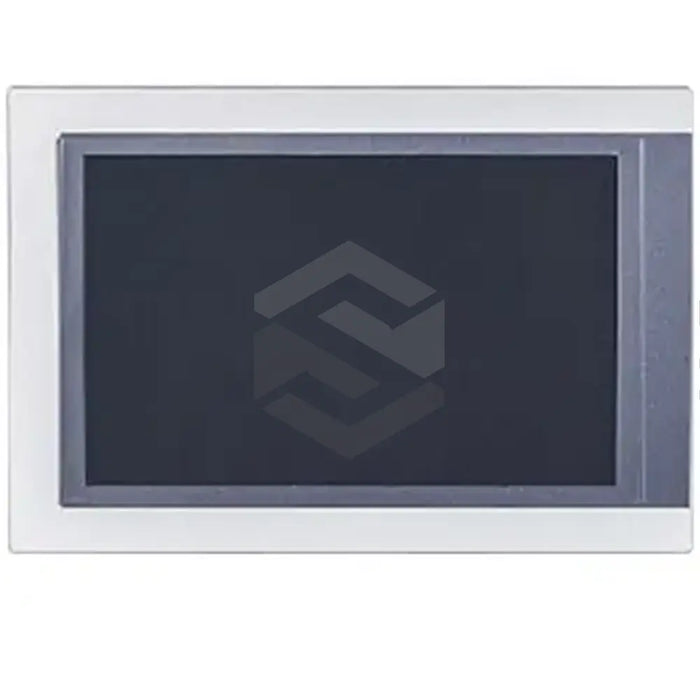

P image of 5AP1120.1043-000

5AP1120.1043-000

by B & R Automation
$5,661.77 - $10,090.22
$5,661.77
$5,661.77 - $10,090.22
$5,661.77
The B&R AP1000 Panels come in several variations including Automation Panel 1000, Panel PC 900, Panel PC 2100, and Panel PC 3100. Each variant can be aptly adapted based on individual operational requirements, offering immense versatility. The reliable 5AP1120.1043-000 model features a 10.4-inch thin-film-transistor color display, boasting a VGA resolution of 640x480, and houses a single-touch analog AMT touchscreen. It also presents a USB 2.0 Type-A interface for data transfer up to a speed of 480Mbt/s. It features a naturally anodized aluminum front frame, alongside a long-lasting LED backlight. Notably, it comes with a 3mm built-in gasket to prevent gas and fluid leakage, providing a front seal. With an impressive contrast ratio and color display, this unit is fully contact-proof at the rear and tolerates a wide range of ambient temperatures. This model is ideally suited for coupling Automation Panel 1000 and other Panel PC systems.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product Type

B&R AP1000 Panel

Model Number

5AP1120.1043-000

Display Type

Thin-Film-Transistor Color Display

Screen Size

10.4 inches

Resolution

VGA (640x480 pixels)

Touch Screen Model

Single-Touch Analog AMT

USB Interface

USB 2.0 Type-A

Current Carry Capacity

500mA

Data Transfer Speed

480Mbt/s

Front Frame Material

Naturally Anodized Aluminum

Backlight Type

LED

Half Brightness Time

70,000 hours

Brightness Range

22.5 - 450 cd/m²

Built-in Gasket

3mm

Sealing Function

Prevents Gas and Fluid Leakage

Transportation Ambient Temperature Range

-25°C to +80°C

Back End Design

Contact-Proof

External Objects Penetration

Cannot be penetrated by objects>=12mm diameter

Minimum Operation Ambient Temperature

0°C

Contrast

900:1

Color Display

16.7 million colors

Compatibility

Automation Panel 1000 and All Panel PC Systems

Pollution Level

Pollution Degree 2
