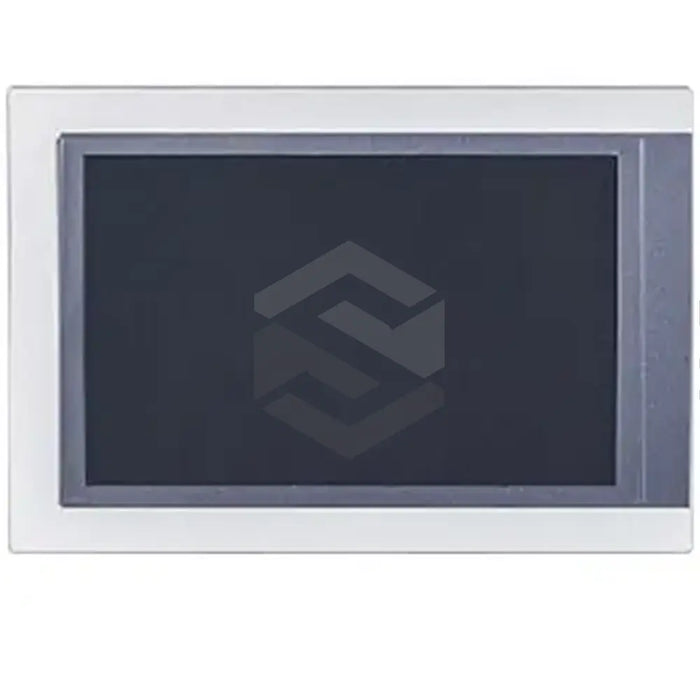

5AP1120.1505-000

Original price $5,622.35 - Original price $6,596.40
Original price
$5,622.35
$5,622.35 - $6,596.40
Current price $5,622.35

Available, Shipping Varies

The 5AP1120.1505-000, a crucial element in the B&R Automation Panel 1000 line, also works in harmony with Panel PC 900, 2100, and 3100 systems. This multifunctional panel features a crisp XGA resolution of 1024 x 768 pixels on a 15.0" Color TFT display. Built from naturally anodized aluminium and designed with an integrated 3mm seal as well as thermal sensors, it resists wear while mitigating the risk of thermal overload. Weighing 5000g, it is intended for control cabinet installation. With a nominal operating voltage of 24V DC (±25%), it uses a maximum nominal current of 3A. Meeting the EN 61131-2 standard for overvoltage category II, the panel's LED backlight provides dimmable brightness from 20 to 400 cd/m². A front-accessible USB 2.0 interface complements the minimalist design, signifying its ability to perform under various industrial conditions with a maximum current-carrying capacity of 500mA.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product Name


5AP1120.1505-000

Manufacturer


B & R Automation

Series


AP1000 automation panels

Resolution


1024 x 768 pixels

Display Size


15.0"

Display Type


Color TFT

Touchscreen Technology


Analog resistive

Transmittance


81% ±3%

Frame Material


Naturally anodized aluminum

Gasket


3mm built-in seal

Thermal Sensors


Present

Installation Type


Control cabinet

Weight


5000g

Nominal Voltage


24V DC (±25%)

Nominal Current


Up to 3A

Overvoltage Category


II per EN 61131-2

Backlight Brightness


Dimmable (20 cd/m² to 400 cd/m²)

Half-brightness Time


50,000 h

Front Interface


USB 2.0 (Type A)

USB Current-Carrying Capacity


500mA.
