5AP980.1505-01

Original price $0.00 - Original price $0.00
Original price
Request a Quote
$0.00 - $0.00
Current price Request a Quote

Request a quote

Add a Message

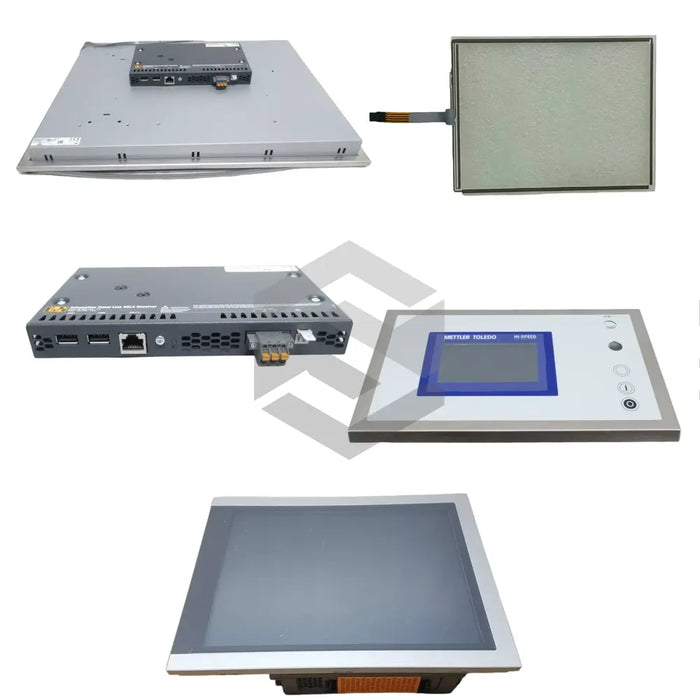

The B & R Automation 5AP980.1505-01 is a robust automation panel designed for challenging industrial and commercial environments. It operates optimally at 0 to 50°C without an enclosure and 0 to 40°C with one, while capable of withstanding storage and transit temperatures from -25°C to 60°C. Powered by a 24 VDC source, it consumes 24 W of power, peaking at 42 W with USB devices. It features three USB 2.0 ports and is protected by an IP65/NEMA 250 Type 4X front panel, ensuring resistance to dust and water splashes, while achieving an IP20 rating on the rear with a panel link card. The panel tolerates vibrations between 2-9 Hz at 1.75 mm amplitude and shocks from 9-200 Hz at 0.5 g, as well as operational shocks of up to 15 g for 11 ms and storage shocks of up to 30 g for 15 ms, providing reliable performance in rigorous conditions.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer


B & R Automation

Model


5AP980.1505-01

PowerSource


24 VDC

TypicalPowerConsumption


24 W

MaximumPowerConsumption


42 W (with USB devices)

InrushCurrent


6 A peak (normally), up to 30 A (less than 300 microseconds)

NominalCurrent


up to 3.2 A

USBPorts


Three USB 2.0 ports

FrontPanelRating


IP65 / NEMA 250 Type 4X

BackPanelRating


IP20 (with Automation Panel link card)

OperatingTemperature


0 to 50 degrees C (without enclosure), 0 to 40 degrees C (with enclosure)

StorageTemperature


25 to 60 degrees C

VibrationTolerance


2 to 9 Hz at 1.75 mm amplitude

ShockResistance


9 to 200 Hz at 0.5 g

OperationalShock


15 g for 11 ms

StorageShock


30 g for 15 ms
