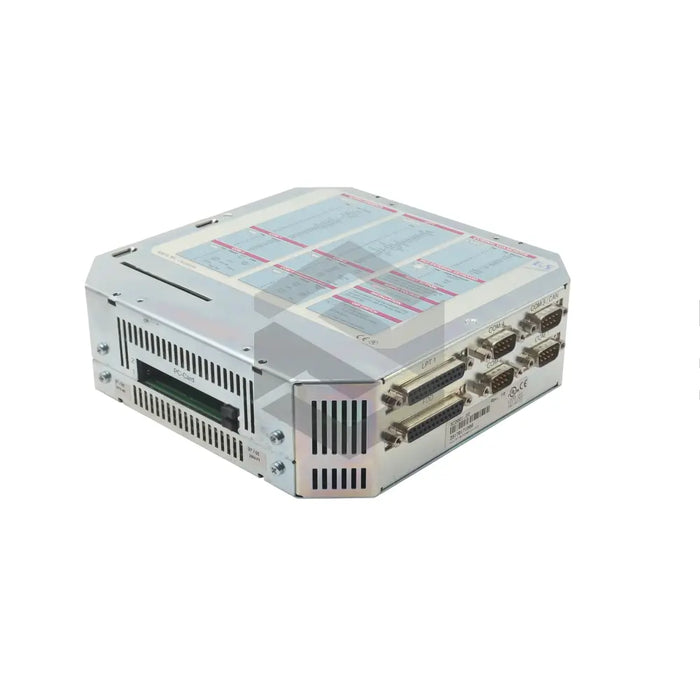

C image of 5C2001.22 | Main (Front Left)

5C2001.22

by B & R Automation
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

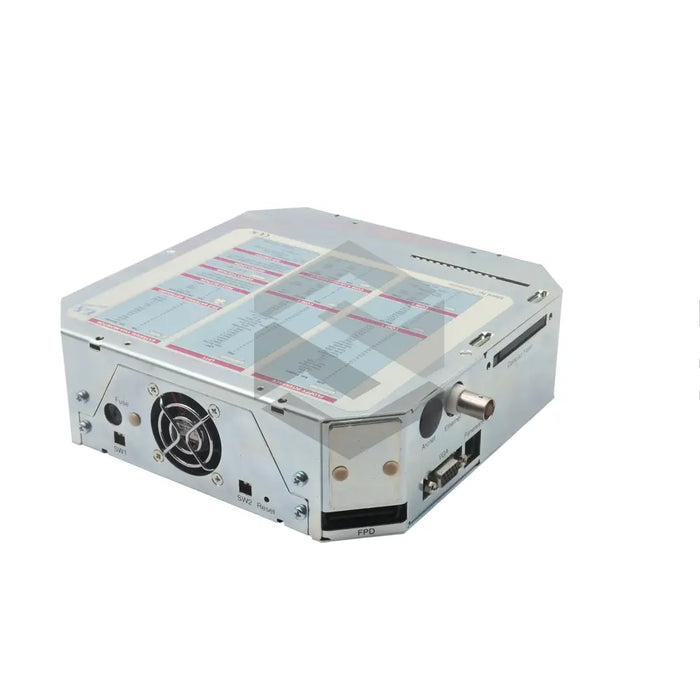

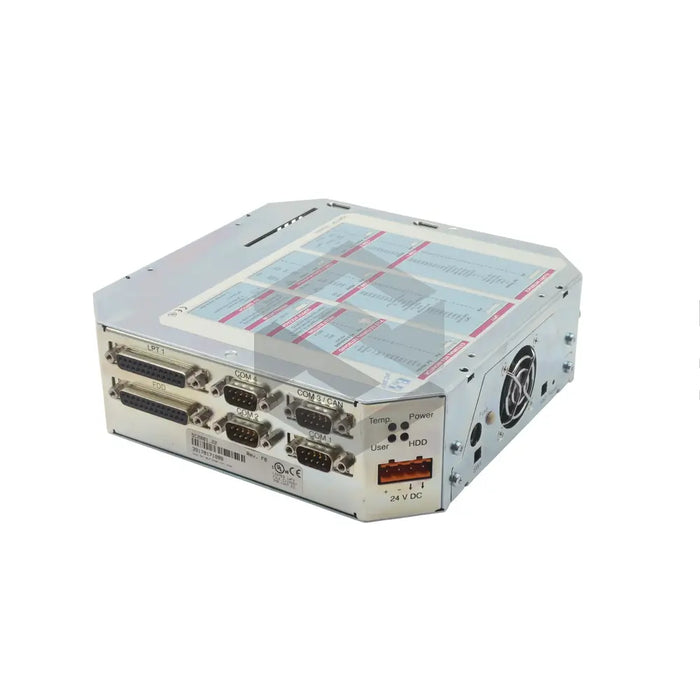

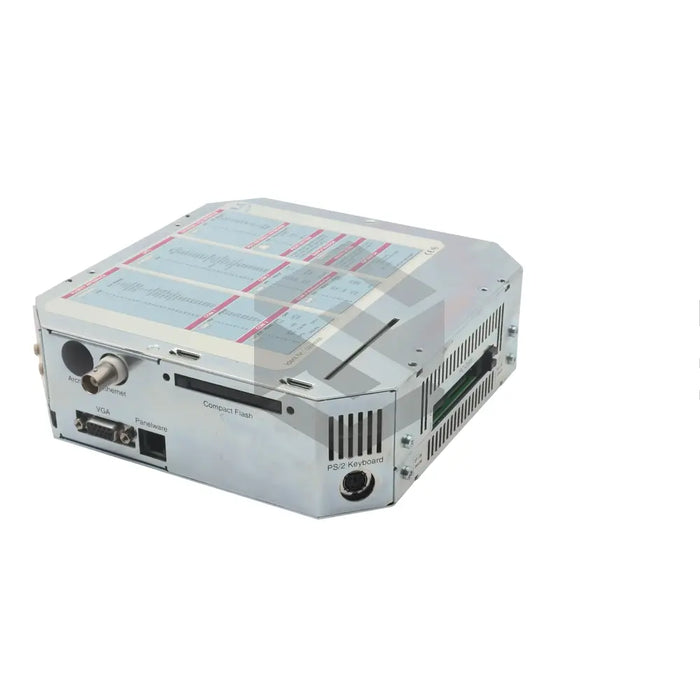

The 5C2001.22 industrial control equipment, produced by B&R Automation, is engineered to meet IBM AT standards, allowing compatibility with multiple operating systems. Powered by a 24V DC supply with a power consumption of 14.5 watts, it features an LED indicator for voltage confirmation. It operates optimally between 0 to 50°C and supports installation up to 3000m altitude. It hosts an 80486DX5, 133 MHz processor, with 32 MB of integrated DRAM and 256 KB of SRAM, while also supporting Compact Flash Type 1 storage. For networking, it includes a BNC and NE2000-compatible Ethernet interface, alongside four serial (two isolated) and one parallel interfaces. The unit incorporates a Dallas Hardware Security Key, fan cooling, a 3V, 950 mAh Lithium-Ion battery pack, and a flat monitor connection. Weighing approximately 1.7 kg, the 5C2001.22 is shipped with essential accessories including a keyboard and display, though software is sold separately.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

B & R Automation

Model

5C2001.22

Product Type

Industrial Control Equipment

Compatibility

IBM AT Standards

Operating Systems

Multiple

Power Supply

24 Volt DC

Power Consumption

14.5 Watt

Voltage Confirmation

LED Indicator

Maximum Altitude

3000 m

Ethernet Interface

BNC and NE2000

Serial Interfaces

4 (2 Electrically Isolated)

Operating Temperature

0 to 50 Degree Celsius

Processor

80486DX5, 133MHz

DRAM

32 MB

SRAM

256 KB

Storage

Compact Flash (Type 1) - Not Included

Installation Angle

Vertical at n450

Weight

1.7 kg

Serial Interface Type

FIFO 16 Byte

Parallel Interface

1

Cooling

Fan

Security

Dallas Hardware Security Key

Battery Type

Lithium Ion

Battery Specification

3V / 950 mAh

Monitor Connection

Flat Monitor Display

Accessories Included

Keyboard and Display Unit

Software

Not Included - Must be Ordered Separately
