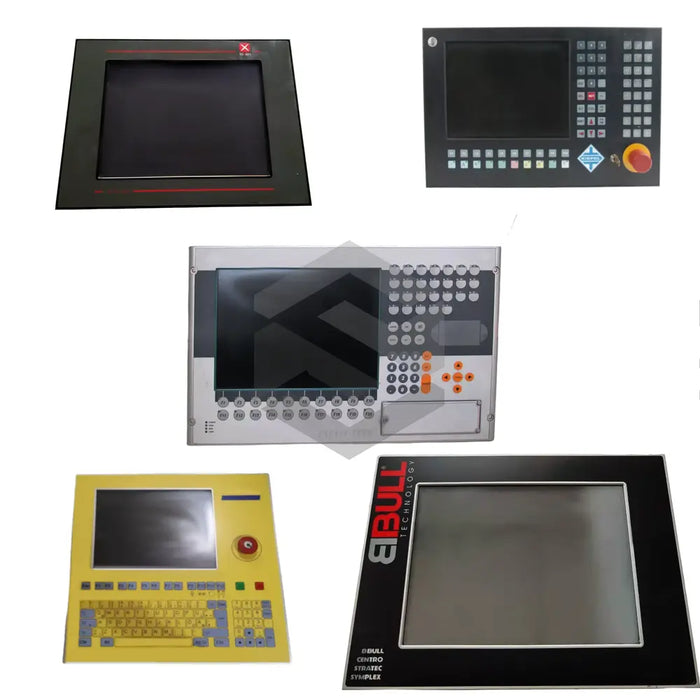

series image of 5D5500.19

5D5500.19

by B & R Automation
$3,334.87 - $3,334.87
$3,334.87
$3,334.87 - $3,334.87
$3,334.87
In Stock, Ships 3 - 5 Days
The 5D5500.19 display unit by B&R Automation is a robust, lightweight interface designed for real-time communication and monitoring of IPC5600 and IPC5000 industrial PCs. Weighing approximately 3.7 kg, it features a 10.4-inch TFT screen capable of displaying up to 262,144 colors, depending on the graphics setup. The display includes a user-friendly keypad with 23 function keys and 20 system keys, highlighted by LED indicators. It is constructed with IP65-rated front panel protection against foreign interference, while the rear is IP20-rated, safe from large solids over 12 mm. Its dimensions are 310 x 387 x 38 mm. The 5D5500.19 can be mounted directly using six screws and includes necessary cables for connectivity. For optimal performance, maintain an ambient temperature below 50°C and relative humidity below 85%.
30 Day Warranty
Technical Specifications
  • Manufacturer: B & R Automation
  • Model: 5D5500.19
  • Type: Display Unit
  • Compatibility: IPC5600 and IPC5000
  • Keypad: 23 function keys with LEDs and 20 system keys
  • Design: Light grey
  • Display Type: Thin Film Transistor (TFT)
  • Screen Size: 10.4 inches diagonal
  • Weight: 3.7 kilograms
  • Front Panel Protection: IP65
  • Rear Side Protection: IP20
  • Colors: Up to 262,144 colors
  • Mounting: Six screws for direct mounting
  • Included Cables: FPD connection cable; additional panelware connection cable
  • Maximum Operating Temperature: 50 degrees Celsius
  • Maximum Relative Humidity: 85 percent
  • Dimensions: Width: 310 mm; Height: 387 mm; Thickness: 38 mm
