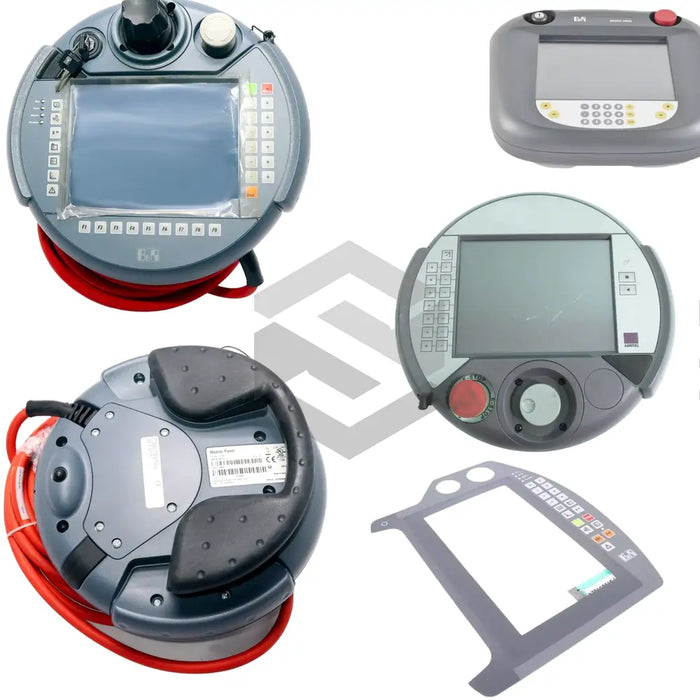

S image of 5MP7140.070N-000

5MP7140.070N-000

by B & R Automation
$4,157.37 - $14,853.40
$4,157.37
$4,157.37 - $14,853.40
$4,157.37
The 5MP7140.070N-000 Mobile Panel by B & R Automation is a robust industrial control device from their 5 MP Series, designed for demanding environments. Featuring a 7.0-inch WSVGA TFT color display with a resolution of 1024 x 600 pixels, the panel supports single-touch analog resistive input. It is powered by a Freescale i.MX6 single-core ARM Cortex-A9 processor, running at 1 GHz, coupled with 1 GB DDR3 RAM and 4 GB of flash storage. Connectivity options include an Ethernet port (10/100 Mbit/s) and a USB 2.0 port. It incorporates operational features such as 20 system keys, a stop button, a 3-position enable switch, and a key switch. The panel is engineered for durability with an IP65 rating, flame-retardant materials, and the ability to withstand temperatures between 0-45°C and drops up to 1.5 meters. Operating at 24 VDC and drawing 12 watts, it is CE, UL, and KC certified, available globally.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

B&R Automation

Model

5MP7140.070N-000

Series

Mobile Panel 7100

Display Size

7.0-inch

Display Type

WSVGA TFT color

Resolution

1024 x 600 pixels

Touchscreen

Single-touch analog resistive

Processor

Freescale i.MX6 single-core ARM Cortex-A9

Processor Speed

1 GHz

RAM

1 GB DDR3

Storage

4 GB flash

Connectivity

Ethernet 10/100 Mbit/s, USB 2.0

Color Depth

16.7 million colors

Brightness

320 cd/m^2

Contrast Ratio

500:1

System Keys

20

Stop Button

Yes

3-Position Enable Switch

Yes

Key Switch

Yes

Protection Rating

IP65

Flame Retardant

Yes

Operating Temperature

0 to 45°C

Drop Resistance

Up to 1.5 meters

Vibration Resistance

Yes

Shock Resistance

Yes

Reverse Polarity Protection

Yes

Operating Voltage

24 VDC

Power Consumption

12 watts

Certifications

CE, UL, KC

Availability

Worldwide through Servo Supplier
