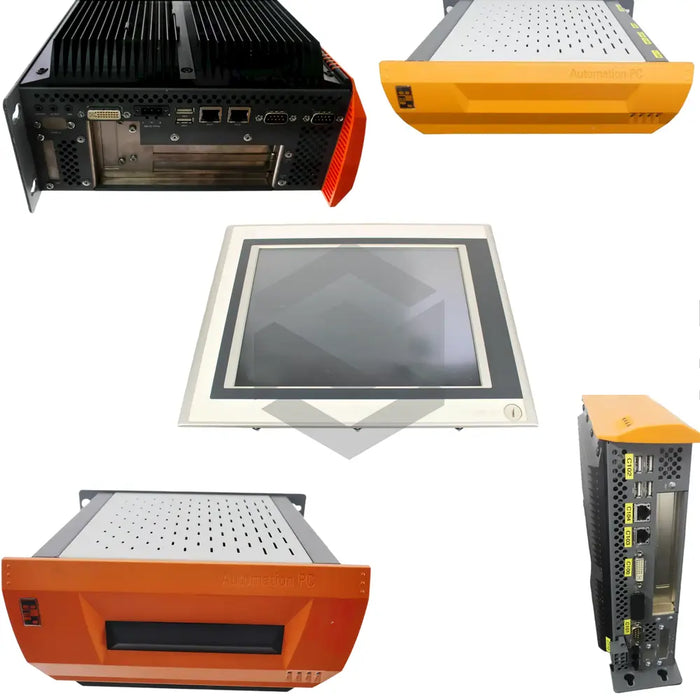

S image of 5PC600.SX01-00

5PC600.SX01-00

by B & R Automation
$1,956.53 - $2,944.10
$1,956.53
$1,956.53 - $2,944.10
$1,956.53

In Stock, Ships 1 - 3 Days

The 5PC600.SX01-00 by B&R Automation is a robust, globally acknowledged industrial product. Known for its quality and innovation, this model incorporates features such as a dongle port, passive cooling through the heat sink, and an optional active fan kit. The component houses a removable Renata 950 mAh battery with a 4-year lifespan. Equipped with a CE and UL certified 5PC600 PC insert card, it consists of power and reset buttons, a buzical buzzer, and a combined PS/2 keyboard/mouse. The BIOS bootloader controller includes a power failure logic buffer, whilst continual installation and removal are discouraged. It contains a single compact flash slot, two USB 2.0 slots with a current capacity of 500 mA per connection, operates at a nominal 24 VDC voltage, and an inrush current of 7 A. The product has an IP20 protection rating and is not suitable for environments with pollution levels exceeding level 2. The functional performance guarantees between 0 to 500 meters.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

B & R Automation

Model Number

5PC600.SX01-00

Cooling System

Passive through heat sink, optional active fan kit

Battery

Renata 950mAh, removable, 4-year service life

Certification

CE and UL

Control

BIOS bootloader with power failure logic buffer time of 10 milliseconds

Build Material

High-quality industrial-grade materials

Features

Combined PS/2 keyboard/mouse, Power and reset button, Single compact flash slot, Two USB 2.0 slots with 500 mA per connection, buzzer

Voltage

24 VDC

Current

Inrush current of 7 A, nominal current of 3.8 A

Environment Specs

Not suitable for environments with pollution level above 2, should be mounted within 0-500 meters range

Protection Rating

IP20
