S image of 5PC600.SX02-00

5PC600.SX02-00

by B & R Automation
$1,689.46 - $12,251.62
$1,689.46
$1,689.46 - $12,251.62
$1,689.46

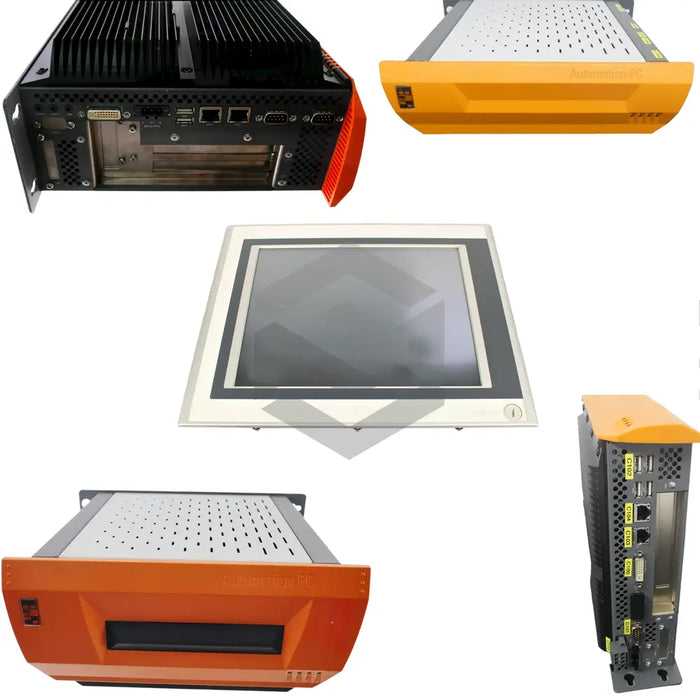

The B & R Automation 5PC600.SX02-00 is a high-quality industrial component constructed with a light grey coated galvanized steel plate for durability. It features a removable lithium-ion Renata 950 mAh battery with a four-year service life under correct usage. Certified under CE and UL standards, it includes a built-in power button and buzel. This PC insert card provides IP20 protection and comes with a vibrant orange plastic front cover. Though not designed for high-risk operations, the card is equipped with safety features like HDD LEDs and passive cooling via a heat sink, with optional active fan kit. It includes a single compact flash slot, two USB 2.0 slots with a current carrying capacity of 500 mA each, a reset button, and a combined PS/2 keyboard/mouse connection. The device operates within a 0 to 55 degree centigrade range, with a nominal voltage of 24 VDC and a nominal current of 3.8 A. Its controller includes a battery-backed BIOS bootloader with a power failure logic buffer time of 10 milliseconds.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

B & R Automation

Model

5PC600.SX02-00

Material

Galvanized steel Plate, Light grey coating

Battery

Removable Lithium-ion Renata 950 mAh

Service Life

4 years (if used correctly)

Certifications

CE, UL

Features

Power button, Buzzer, HDD LEDs, Passive cooling through heat sink, Active fan kit (optional)

Protection

IP20

Front Cover Material

Plastic, Orange color

Slots

Single compact flash slot, Two USB 2.0 slots

Current-Carrying Capacity

500 mA per connection

Buttons

Reset button, Combined PS/2 keyboard/mouse

Nominal Current

3.8 A

Nominal Voltage

24 VDC

Operating Temperature Range

0 to 55 degree centigrade

Controller Features

Battery-backed BIOS bootloader, Power failure logic buffer time of 10 milliseconds.
