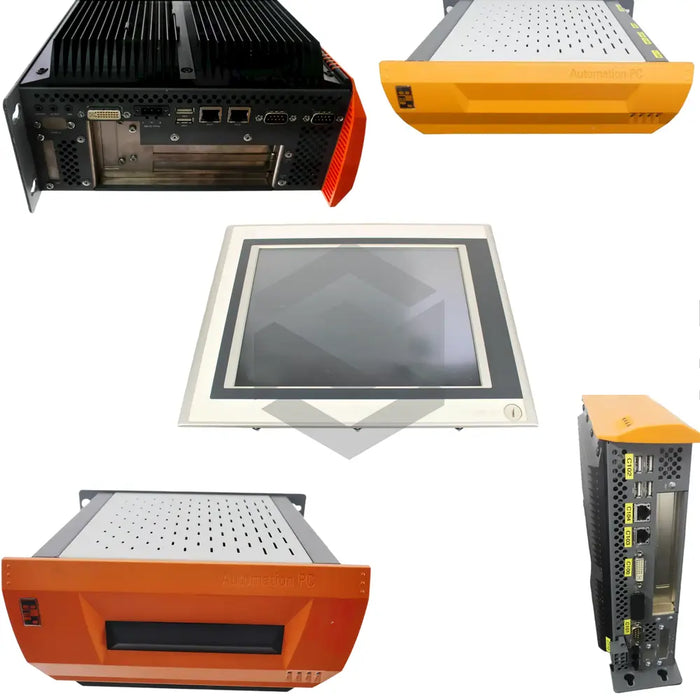

S image of 5PC600.SX05-01

5PC600.SX05-01

by B & R Automation
$1,286.89 - $2,516.76
$1,286.89
$1,286.89 - $2,516.76
$1,286.89

In Stock, Ships 1 - 3 Days

The 5PC600.SX05-01, produced by B & R Automation, is a high-quality PC insert card featuring multiple connection options. It includes one compact flash slot, two USB 2.0 slots with transmission speeds ranging from 1.5 Mb/s to 480 Mb/s, and a dongle connector. The model also has two shielded RJ45 ethernet ports with a data transmission rate of 10/100Mb/s. Equipped with a detachable Renata 950 mAh lithium-ion battery, the CE-certified 5PC600 supports nominal and inrush currents of 5 A and 10 A. Storage guidelines require non-metallic surfaces and ESD packaging. Its additional features include a DVI-I port, optional SRAM, combined PS/2 keyboard/mouse support, and a passive cooling system with an optional active fan kit. The 5PC600.SX05-01 comprises five 32-bit PCI slots with a 33 MHz bus speed, an additional UPS slot, and is protected by an IP20 rating. The card is encased in galvanized steel with a slim plastic front cover and includes an on/off and reset button plus a buzzer.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

B & R Automation

Model

5PC600.SX05-01

Slots Configuration

1 Compact Flash Slot, 2 USB 2.0 Slots

USB Speed Range

1.5 - 480 Mb/s

Battery Type

Detachble Lithium-ion Renata 950 mAh

Item Certification

CE-Certified

Currents

Nominal and inrush currents of 5 A and 10 A

Handling Requirement

Must be grounded

Touch Restriction

Can only be touched on thin sides or front plate

Storage Medium

ESD packaging, conductive foam and non-metallic surfaces

Ports

DVI-I port for panels and monitoring interfaces

SRAM

Optional

Support

Combined PS/2 keyboard/mouse and passive cooling through the heat sink

Fan Kit

Optional

Ethernet Ports

Two shielded RJ45 with 10/100 Mb/s data transmission rate

PCI Slots

Five 32-bit PCI slots with 33 MHz bus speed

Additional Slot

UPS slot

Material

Galvanized steel plate with plastic front cover

Appearance

Slim

Protection

IP20

Buttons

On/Off Button, Reset Button

Additional Feature

Buzzer

Quality Assurance

Extensively tested before shipping
