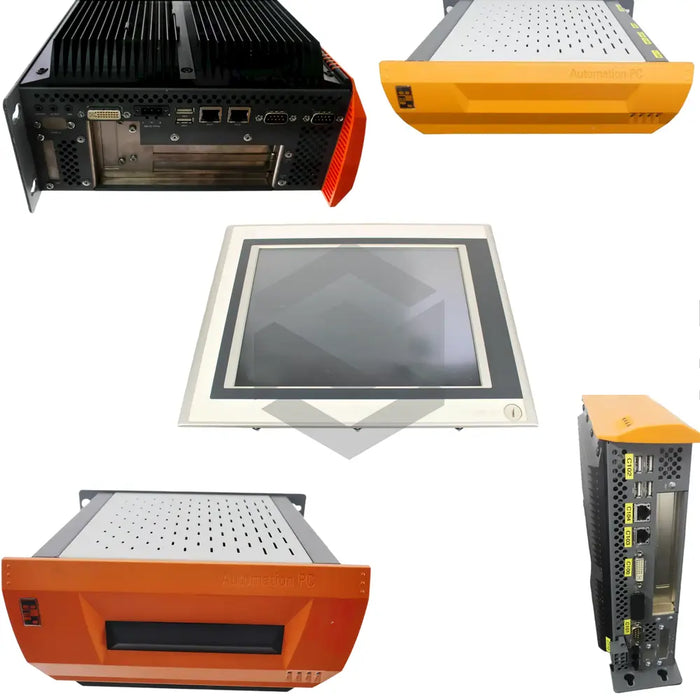

S image of 5PC725.1505-01

5PC725.1505-01

by B & R Automation
$2,258.33 - $2,258.33
$2,258.33
$2,258.33 - $2,258.33
$2,258.33

In Stock, Ships Fast

The 5PC725.1505-01 Panel PC by B & R Automation is an industrial automation solution designed for seamless machine operation and control. Equipped with a Renata 950 mAh lithium-ion battery, it ensures reliable performance with a 4-year lifespan and easy external replacement. This model features a 15-inch TFT color display offering a resolution of 1024 x 768 pixels, 16 million colors, and an 80-degree viewing angle both horizontally and vertically. The LED backlight provides 350 cd/m^2 brightness and lasts 50,000 hours at half brightness. For touch interface, it employs AMT technology with an 81% transmittance rate. Connectivity is supported through a COM1 RS232 modem, USB 2.0, and Ethernet ports. Constructed with coated aluminum housing and an anodized aluminum front frame, the unit includes a polyester panel overlay and a Metamoll gasket, achieving an IP65 protection rating. Measuring 426 mm by 330 mm by 58.7 mm and weighing 6.27 kg, it delivers dependable functionality without power or reset buttons but includes a buzzer for alerts.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Model

5PC725.1505-01

Manufacturer

B & R Automation

Type

Panel PC

Battery

Renata 950 mAh lithium-ion

Battery Life

4 years

Power Button

None

Reset Button

None

Audio Alerts

Buzzer

BIOS

AMI

Power Failure Logic

MTCX controller

Buffer Time

10 milliseconds

Display

15-inch TFT color

Resolution

1024 x 768 pixels

Colors Supported

16 million

Contrast Ratio

800:1

Backlight

LED technology

Brightness

350 cd/m²

Backlight Lifespan

50,000 hours at half brightness

Viewing Angles

80 degrees horizontally and vertically

Touch Screen

AMT technology

Touch Interface

Analog resistive

Touch Controller

12-bit B & R controller

Transmittance Rate

81%

Connectivity

COM1 RS232, USB 2.0, Ethernet

RS232 Connector

9-pin DSUB

Ethernet Transfer Rates

10/100 Mbit/s

Housing

Coated aluminum

Front Frame

Naturally anodized aluminum with polyester panel overlay and Metamoll gasket

Protection Rating

IP65

Weight

6.27 kg

Dimensions

426 mm W x 330 mm H x 58.7 mm D without flange
