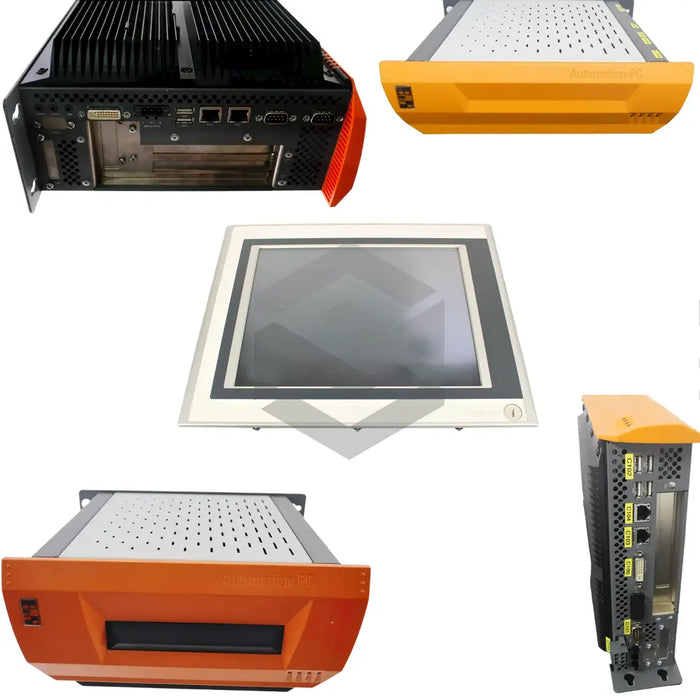

S image of 5PC810.SX02-00

5PC810.SX02-00

by B & R Automation
$2,414.23 - $8,051.22
$2,414.23
$2,414.23 - $8,051.22
$2,414.23
The 5PC810.SX02-00 is a PC insert card, created by the renowned manufacturer of industrial components, B & R Automation. It comes with 5 Type-A USB 2.0 ports with an output range of 500 mAh - 1A per port, housed in a sturdy frame of orange plastic and galvanized metal. The model includes two PCI slots, a fan kit slot, HDD LEDs, and a detachable lithium-ion Renata 950 mAh battery with a lifespan expectancy of 2.5 years. With shock values of 15g for 11ms, vibration values of 2-9Hz, an IP20 protection, and category 2 overvoltage protection, the card is safeguarded against fluctuating industrial conditions. It also houses two small flash slots and a 512 kb battery-supported SRAM; a DVI-I connector and a dongle port are also available for connections. It should be noted that if this model fails, other connected equipment needs to be safely dealt with by the user. The 5PC810.SX02-00 could be purchased from the Servo Supplier, backed by a one-year warranty.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

B & R Automation

Model Number

5PC810.SX02-00

USB Ports

5 Type-A USB 2.0

USB Current-Carrying Capability

500 mAh to 1 A per connection

Material

Plastic and Galvanized Metal

Indicators

HDD LEDs

Features

Power Button and Buzzer

Mounting

Screw Clamp Terminal Block or Cage Clamp Terminal Block (to be acquired separately)

Operational Vibration

2 to 9 Hz

Operational Shock Values

15 g for 11 ms

Overvoltage Protection

Category 2

PCI Slots

2

Fan Kit Slot

Yes

Battery

Removable lithium-ion Renata 950 mAh (2.5 years service life)

Protection Level

IP20

Nominal Voltage

24 VDC

Nominal Current

6 A

Inrush Current

7 A

Flash Slots

2

SRAM

512 kb battery-backed

Connectors

DVI-I

Other Ports

Dongle Port
