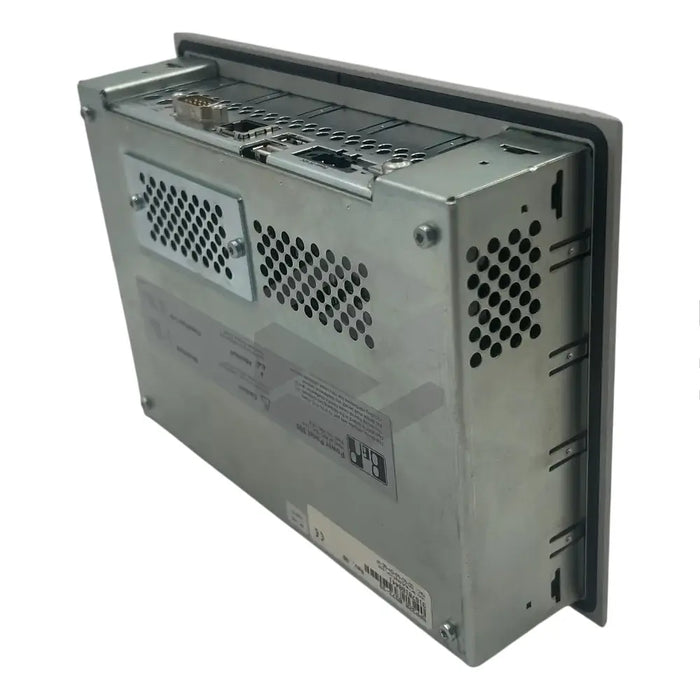

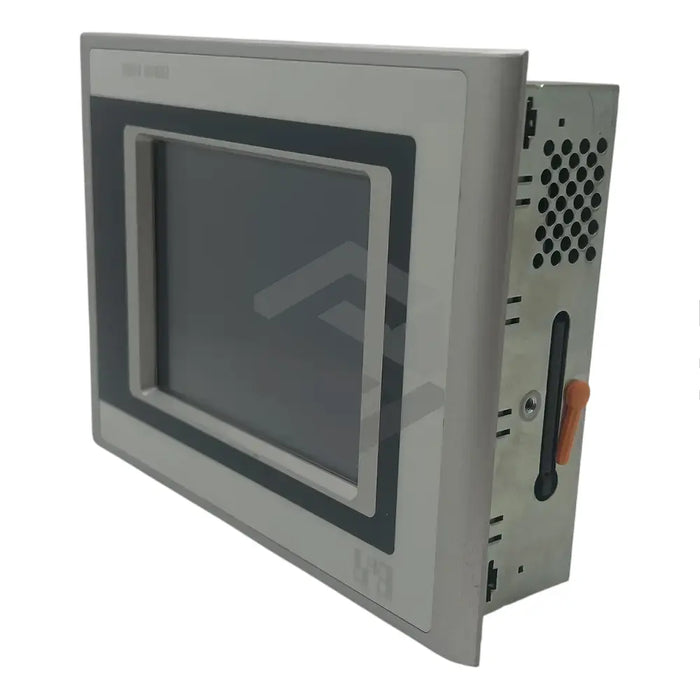

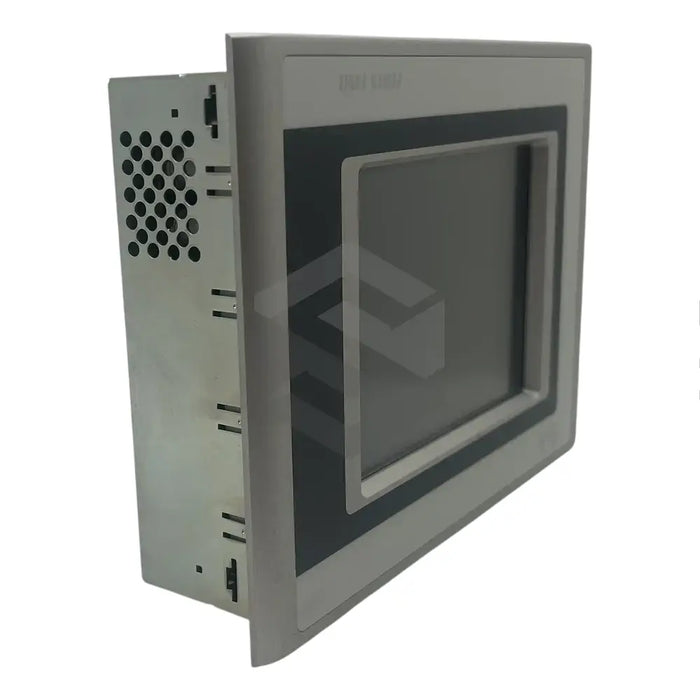

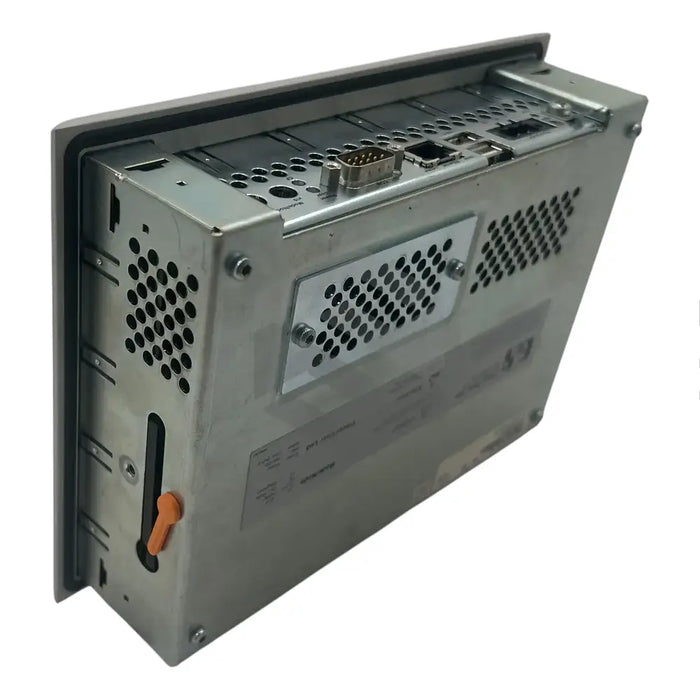

series image of 5PP320.0573-39

5PP320.0573-39

by B & R Automation
$2,899.83 - $2,899.83
$2,899.83
$2,899.83 - $2,899.83
$2,899.83
In Stock, Ships 1 - 2 Days
The B & R Automation Power Panel 5PP320.0573-39 features a 5.7-inch Color TFT display with a 640 x 480 VGA resolution, offering optimal clarity and efficiency. It is equipped with 256 MB of SDRAM, enabling real-time data processing for complex industrial control systems. Storage expansion is facilitated through a Type I CompactFlash port. The panel supports remote monitoring and control via a 10/100 Mbit/s Ethernet interface and an RS232 serial interface, though caution is advised in electrically noisy environments. It also includes USB 2.0 and USB 1.1 ports, alongside dual LED indicators for CF card activity and customizable notifications. Operating on an 18-30 VDC power supply with a 13W average power consumption, it is suitable for various industrial applications. The panel endures temperatures from -20 to +60°C in storage and 0 to +50°C in operation. It features IP20 protection on the rear and IP65 on the front, ensuring durability against dust and water infiltration.
30 Day Warranty
Technical Specifications
  • Manufacturer: B&R Automation
  • Model: 5PP320.0573-39
  • Display: 5.7-inch Color TFT
  • Resolution: 640 x 480 VGA
  • Memory: 256 MB SDRAM
  • Expandable Storage: Type I CompactFlash port
  • Ethernet Connector: 10/100 Mbit/s
  • Serial Interface: RS232
  • USB Ports: USB 2.0 and USB 1.1
  • LED Indicators: 2 LEDs (CF card activity, user-programmable yellow LED with power status)
  • Power Supply: 18 to 30 VDC
  • Power Consumption: 13W average
  • Operating Temperature: 0 to +50 degrees C
  • Storage Temperature: -20 to +60 degrees C
  • Weight: 1.4 kg
  • Protection Rating (Rear): IP20
  • Protection Rating (Front): IP65
