608830255

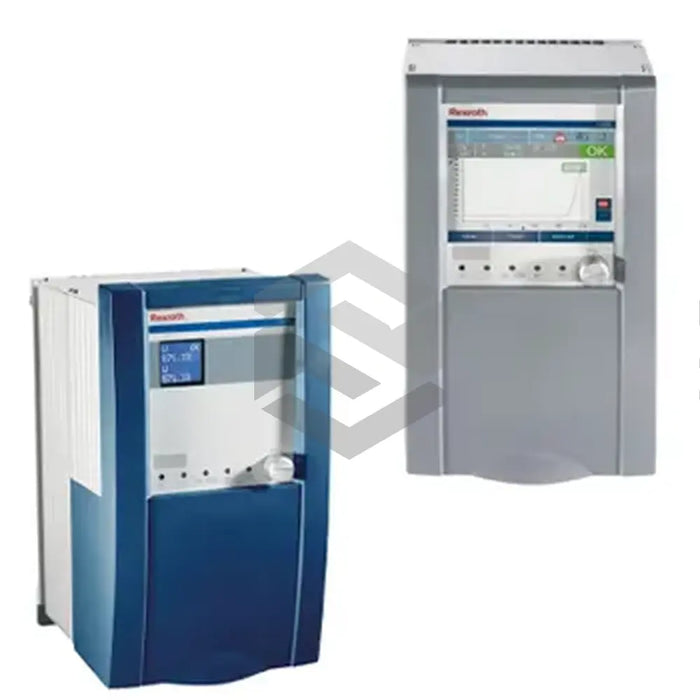

The 608830255 (CS351S-G) is an exemplary model by Bosch Rexroth Indramat, known globally for its advanced industrial automation solutions, including drive controllers, servo motors, and compact systems. This model is a comprehensive solution designed to integrate with ErgoSpin or CC-ErgoSpin handheld nut runners or tightening spindles. Well-suited for a 1-phase AC 110 – 230 V power source, the CS compact system operates with a tolerance of ±10% and a frequency of 50/60 Hz. It operates a continuous current of 10 A (at 120 V)/ 5.2 A (at 230 V) and boasts a nominal power of 1200 VA.
The 608830255 (CS351S-G), a lightweight model at 9.9 kg, showcases an IP 54 protection class, resistant to dust and water splash, making it optimal for varying work environments. Its functionalities comprise a servo amplifier, power supply, TFT display (VGA 640x480) with an integrated touch screen, logic conforming to IEC 61131-3, and an incorporated computer unit. The model also contains a controller and multiple slots for installing additional interface cards. Boasting multiple socket options and an easy-to-check network status on the front panel, the model also includes a built-in battery for storing tightening results. The 608830255 (CS351S-G) model is sure to enhance any industrial operation with its technological efficiency and versatile features.
