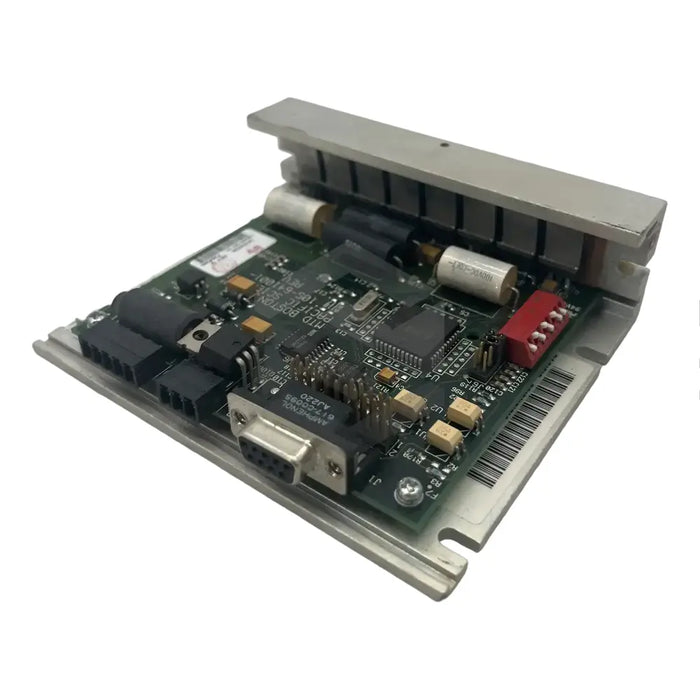

product Main (Front Left) image of 6410-006-N-N-N

6410-006-N-N-N

by Pacific Scientific
$1,114.56 - $1,114.56
$1,114.56
$1,114.56 - $1,114.56
$1,114.56
In Stock, Ships Today
The 6410-006-N-N-N, produced by Pacific Scientific, is a micro step drive used primarily in control systems within the packaging and printing industry. Notably, this drive remains rigid when stationary and has the ability to regulate high torque. As a brushless solution, it is entirely maintenance-free. Utilizing 'microstepping', a process that subdivides each step electronically into smaller ones, it imparts increased precision and smoothness to the hybrid step motor. Further, its accuracy can be attributed to complex functions linked directly with electronic tolerances, motor precision, and certain mechanical transmission errors. This product operates within a speed range of 0 to 3000 rpm, helps eliminate resonance, and enables full torque utilization. It is easy to install without the need for tuning or setup as required in servo systems. Finally, the 6410-006-N-N-N is known for its exceptional stability, and its inability to drift when stationary.
30 Day Warranty
Technical Specifications
  • Manufacturer: Pacific Scientific
  • Product Number: 6410-006-N-N-N
  • Type: Micro Step Drive
  • Features: Stiff when stopped, High torque control, Completely brushless, Maintenance free
  • Benefits: Increased position resolution, Machine smoothness, High accuracy
  • Suitable Industries: Packaging, Printing
  • Accuracy: Less than the resolution, Dependent on electronic tolerances, motor accuracy, mechanical transmission errors
  • Motor Benefits: Smooth operation, Resonance elimination, Speed range 0 to 3000 rpm, Full torque utilization, Freedom from rattling and mechanical wear, Easy installation, No tuning or setup needs
  • Stability: High stable, No drifting when stopped.
