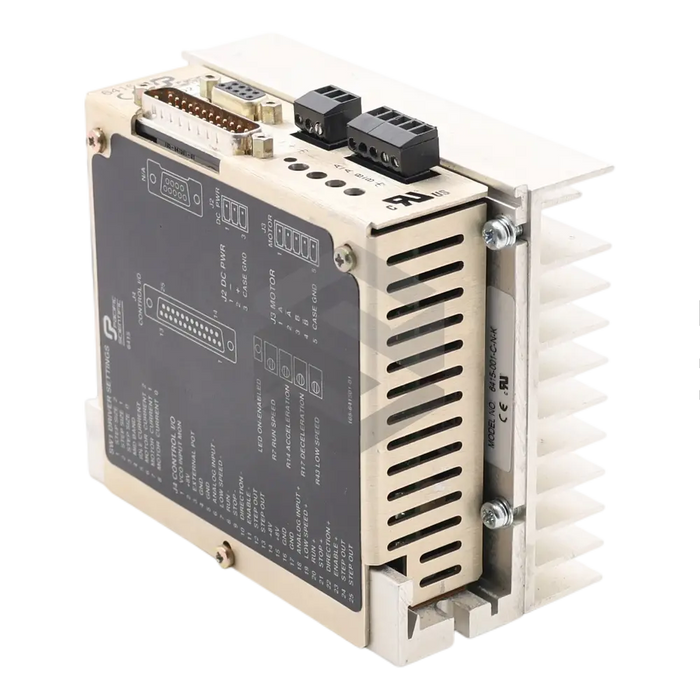

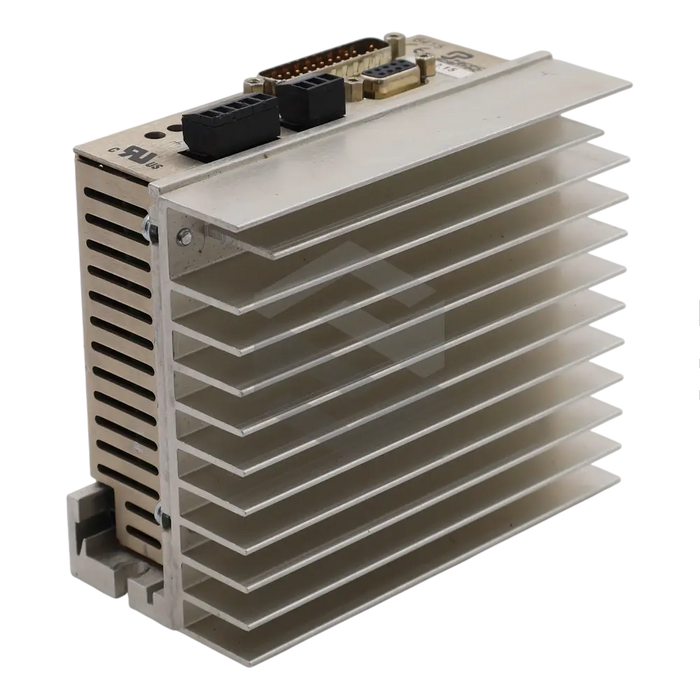

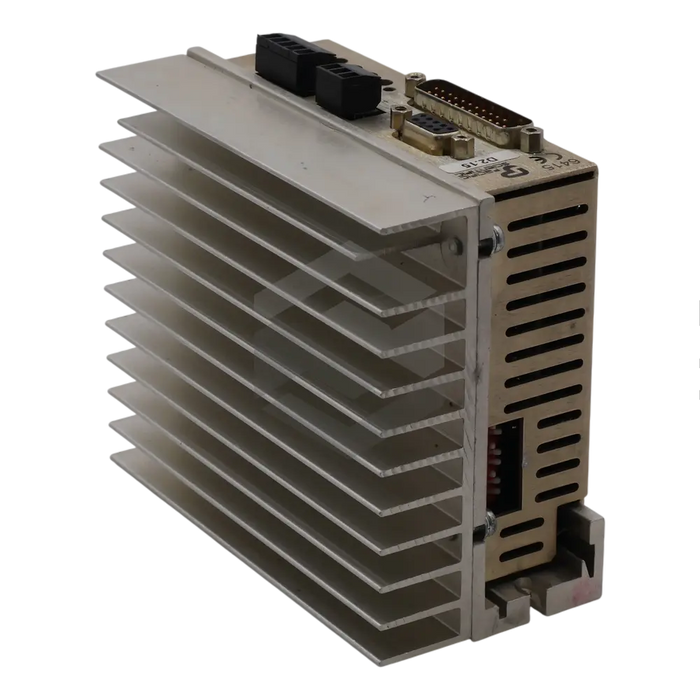

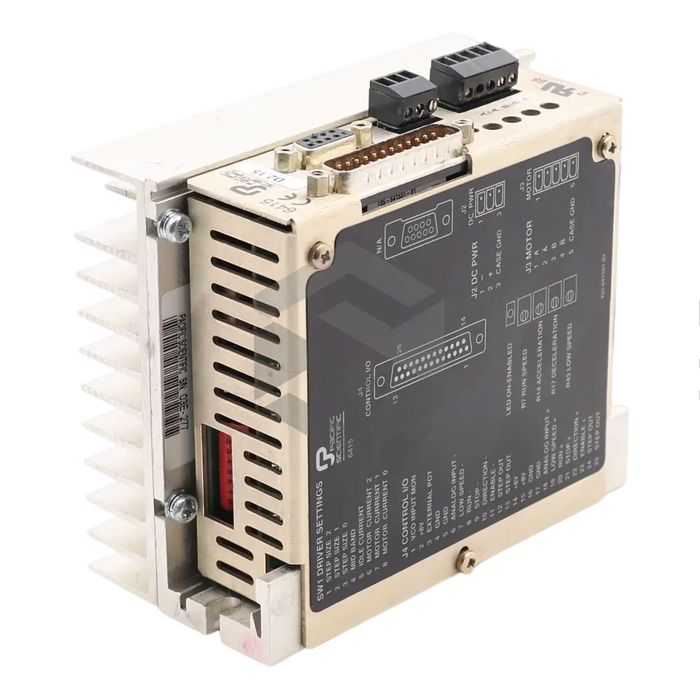

Produced by Pacific Scientific, a leader in industrial automation renowned for its strict protocols, innovative products, and high safety standards, the 6415-001-C-N-K is a part of the brand's exclusive 6000 family drive series. This micro stepper drive controller's prominent feature is a powerful 4 phase bipolar mechanism which proficiently manages the current flow in both high and low waveforms. The controller, compatible with Powermax and Powerpac motors, receives an analog input of 10V and delivers an analog output of 8V. It also uses AC power pulse signals to control the oscillation and drive of the motor, thus managing the speed and direction of mechanical designs. Despite lacking cover or heat sink, it provides a peak power of 7.1A, a velocity control at 5A rms, and a DC voltage range from 24 to 74 volts. The device also includes a connector kit and facilitates control via easy-to-use dip switches, offering high-torque performance when integrated with suitable motors.
