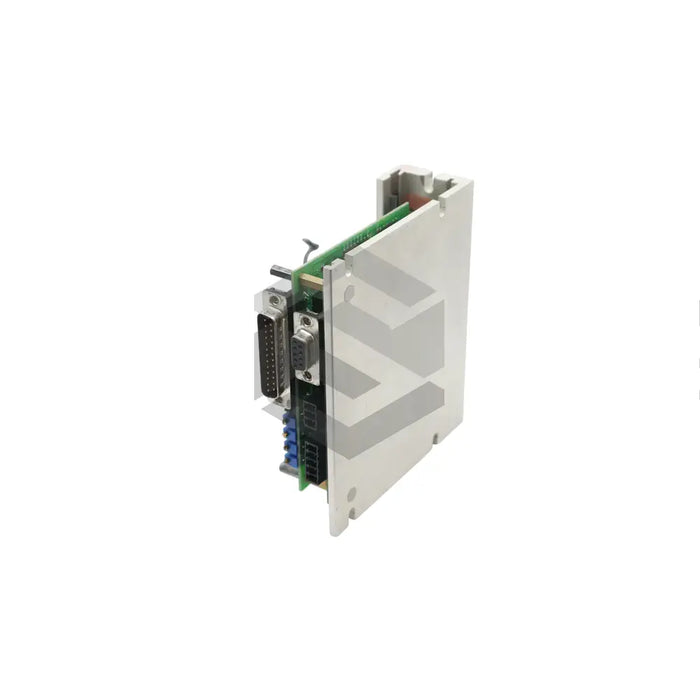

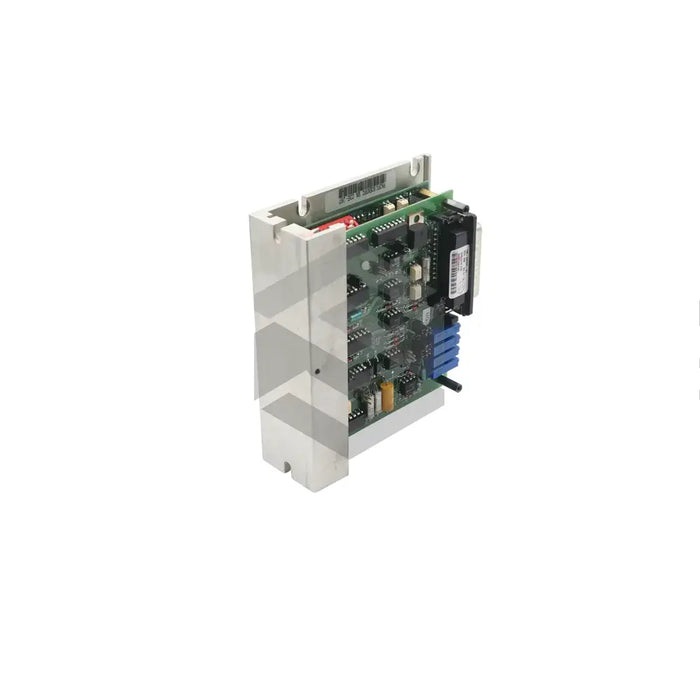

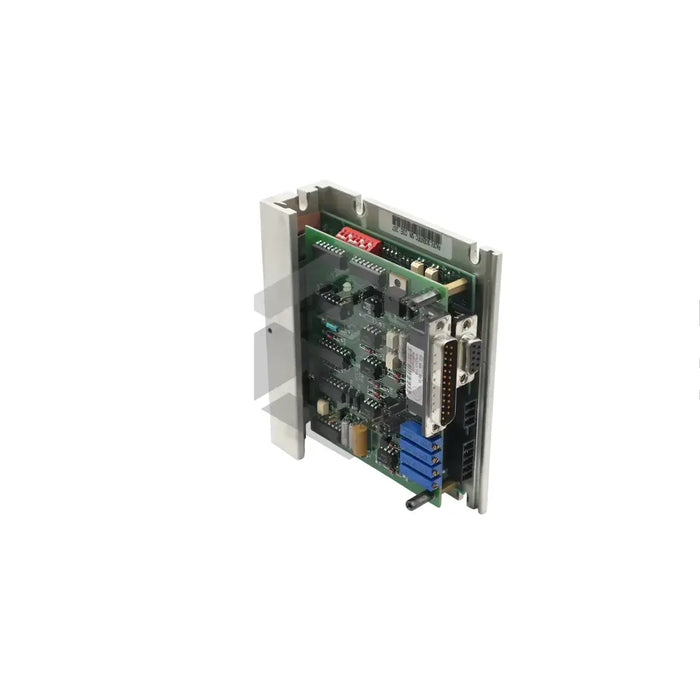

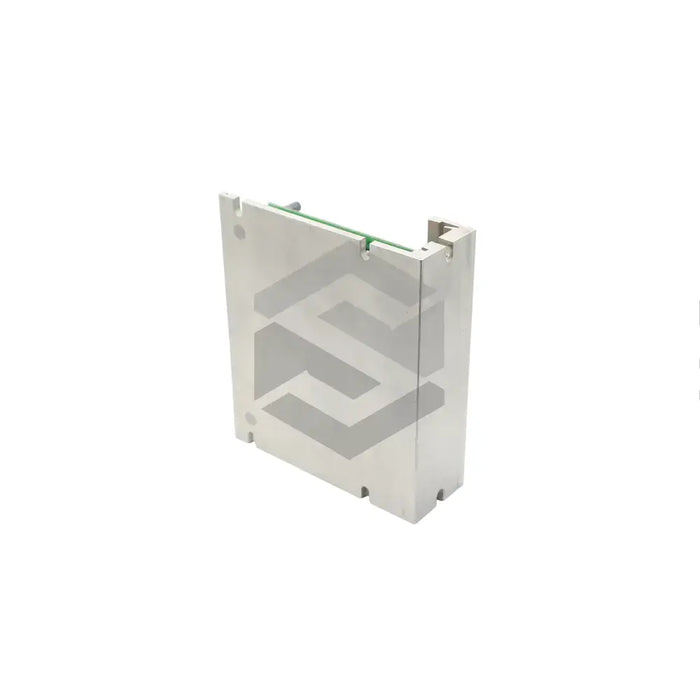

6415-001-N-N-K
The Pacific Scientific 6415-001-N-N-K stepper drive is part of the renowned 6415 Microstep Drives series, engineered by Manufacturer: Pacific Scientific to convert standard step and direction inputs into precise motor winding currents. This drive belongs to the Drive Type Family: Stepper Drive (6000) and delivers a Power Level: 7.1 A peak, 5 A rms, 24–75 Vdc rating to accommodate a broad range of motion control applications. It features a Customer Customization Number: Standard Unit configuration and includes the factory-default Connector Kit Option: Includes Connector Kit for streamlined installation. The unit ships without additional protection, indicated by the Cover Option: No Cover, and operates without passive thermal management hardware, as denoted by the Heat Sink Option: No Heat Sink. The combination of robust current capacity and flexible voltage input makes this drive suitable for both legacy and new automation systems.
Performance characteristics of the 6415-001-N-N-K emphasize reliable current regulation and responsive oscillator-driven control. The integrated Functionality: Oscillator & Motor Drive module generates accurate pulse sequences to manage torque delivery and minimize resonance in the connected stepper motor. With a peak current of 7.1 A and an RMS current of 5 A, the drive delivers consistent power to the motor under varying load conditions. The 24–75 Vdc supply range supports rapid acceleration and high-speed operation while maintaining stable winding currents. The pre-installed Connector Kit Option ensures dependable signal integrity and reduces installation time by providing standardized cabling and terminals. As a standard unit in the 6415 Microstep Drives lineup, it upholds strict manufacturing tolerances for vibration resistance and electromagnetic compatibility.
Reliability is assured through the robust oscillator design, which minimizes harmonic distortion and ensures smooth microstepping across the entire speed range. The absence of a cover and heat sink simplifies maintenance and facilitates integration into compact drive cabinets where airflow and thermal management are handled centrally. Compatibility within the 6415 Series allows easy interoperability with other Pacific Scientific motion controllers and programmable logic interfaces. The drive’s standard configuration and inclusion of the Connector Kit Option accelerate system commissioning and reduce downtime during field servicing. Ideal applications range from precision positioning in packaging and labeling machinery to coordinated multi-axis control in semiconductor handling and pick-and-place equipment.
