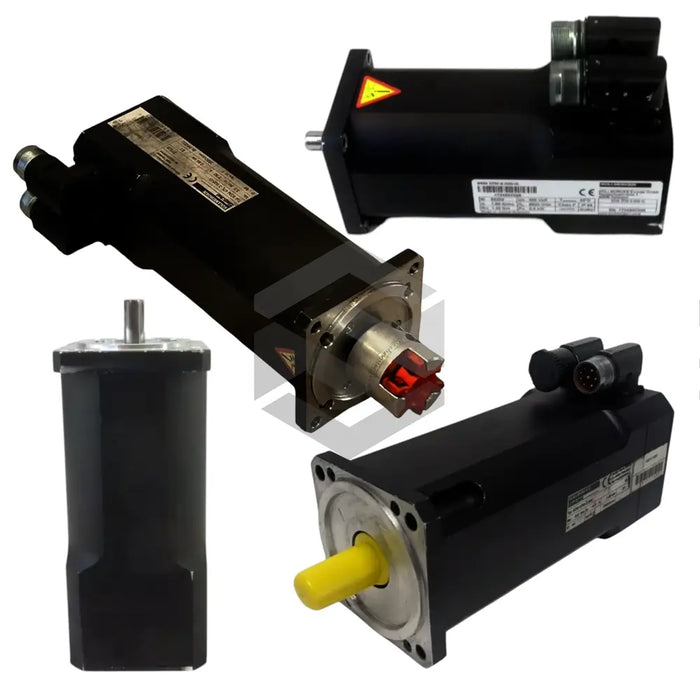

6SM 37L-4.000
by Kollmorgen
The 6SM 37L-4.000 from Kollmorgen is part of the 6SM Synchronous Servo Motors series and is engineered for high-performance industrial applications. This Kollmorgen-Seidel Servomotor impresses with a rated power of 0.50 kW and an operational speed of 4000 U/min while providing a torque of 1.5 Nm. The motor’s design emphasizes precision motion control, making it suitable for automation tasks such as those found in robotics, textiles, and packaging machines. Its rated current of 1.60 A and a brake voltage of Br. 24 VDC further underline its reliable performance in synchronized motion systems.
Detailed technical specifications include an operational mode designated as S1 and a compact design with a shipping dimension of 31.00 x 22.00 x 20.00 cm. The motor weighs 3.20 kg which supports its efficient integration into various systems, while the overall shipping weight is noted as 3.50 kg. With a protection rating of IP 64, this servo motor is well suited to environments where dust and water ingress must be controlled. The specified features such as the Kollmorgen-Seidel Servomotor construction and precise speed regulation exemplify a design focused on stable performance and reliable power transfer.
Additional features further enhance its industrial utility, including compliance with stringent standards such as the DIN requirements: the flange exhibits a tolerance class of R as per DIN 42955 and the motor meets the vibration class of N per DIN ISO 2373. The temperature operating range from 5 to 40 degrees Celsius ensures both durability and steady performance in varying environments. The integration with Servostar servo amplifiers and the built-in resolver feedback option not only safeguard operational safety but also optimize system efficiency. Overall, the 6SM 37L-4.000 servo motor delivers precise control and robust performance, making it an ideal choice for modern automated industrial systems.
