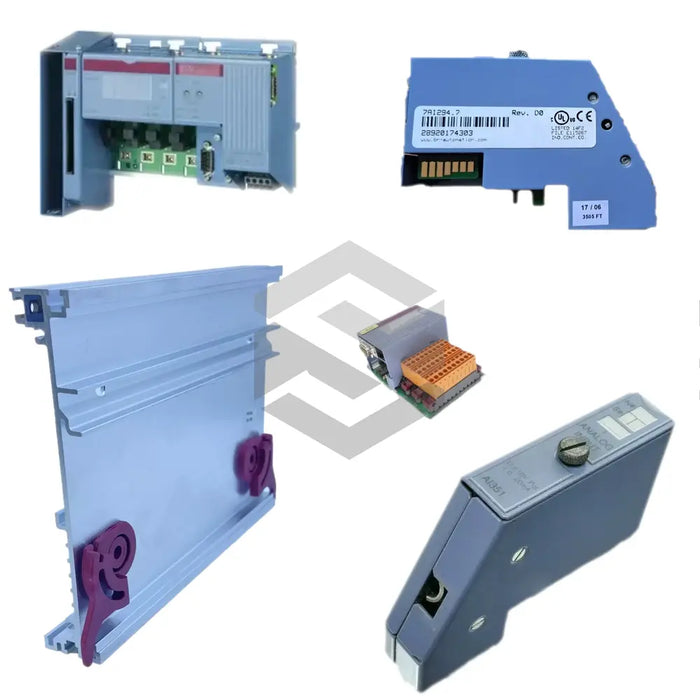

7CP470.60-1

The B & R Automation 7CP470.60-1 controller is a high-performance CPU module within the System 2003 Controllers series, engineered for advanced industrial automation. This module operates on a 24 VDC Input Voltage and features 100 KB User SRAM alongside a 256 KB FlashPROM, delivering robust memory capacity for complex logic and data handling. Designed as a Product Type: CPU, the 7CP470.60-1 maintains an efficient Power Consumption of 14 W under nominal load conditions. Housed in an IP20 Protection Type enclosure, the module is optimized for control cabinets in factory environments. With support for up to 128 channels of digital I/O and 64 channels of analog I/O, it accommodates a broad range of sensor and actuator configurations.

Performance and connectivity are driven by integrated serial interfaces and rapid processing capabilities. The module provides one RS232 Interface (1 x 9-pin DSUB plug) with a RS232 Max Transfer Rate of 57.6 kBit/s and one CAN Interface (1 x 9-pin DSUB plug, potential isolated) supporting a Can Max Transfer Rate of 500 kBit/s. The on-board CPU achieves a fast task cycle time of 1 ms and executes individual instructions in approximately 1.6 μs, ensuring real-time determinism for time-critical control loops. A dedicated 3 V/950 mAh lithium battery offers non-volatile backup for memory, with a typical buffer current of 1.6 μA and a maximum of 60 μA, safeguarding configuration data during power interruptions. The module also features hardware undervoltage and overvoltage monitoring, along with an on-board watchdog timer and diagnostic LEDs for rapid troubleshooting and operational transparency.

Reliability and environmental resilience are assured by an operational range of 0 °C to +50 °C (vertical mounting) and adherence to industrial protection standards. The controller’s IP20 rated housing and bus interface via a 9-pin DSUB socket streamline integration into B&R’s modular I/O infrastructure. With capacity for 128 digital I/O channels and 64 analog I/O channels, the 7CP470.60-1 is ideal for mid-range machine control, packaging systems, and robotic cell supervision. Its combination of deterministic performance, extensive I/O support, and robust protection makes it a versatile solution for manufacturing automation, process control, and mobile machinery applications where uptime and precision are paramount.
