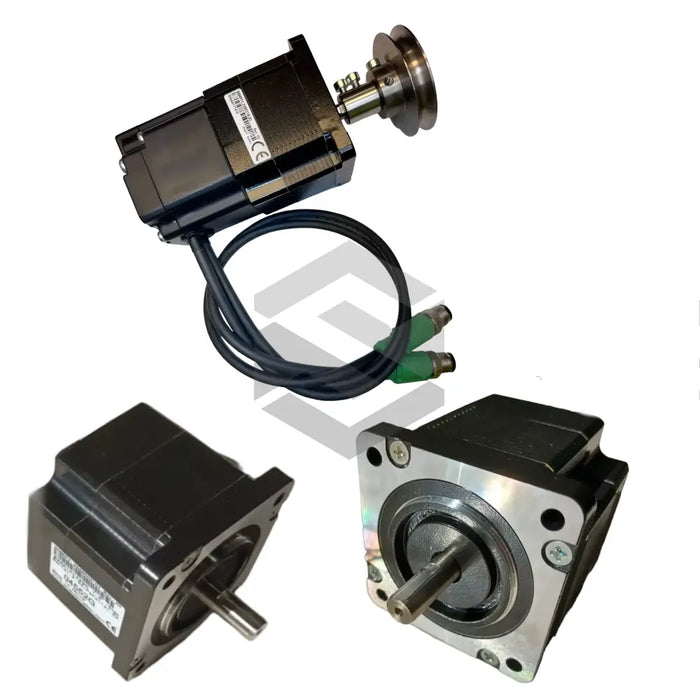

80MPD5.300S000-01
The B & R Automation 80MPD5.300S000-01 is a precision stepper motor in the 80M Stepper Motors series designed for high-accuracy positioning and speed control in industrial automation. With a flange diameter of 56.4 mm and a stall torque of 2.2 Nm, it delivers reliable torque for demanding motion tasks. Its 1.8° step angle enables fine incremental movements, making it ideal for applications such as indexing tables, pick-and-place machines, and small CNC equipment where precise motion is critical.
This motor supports flexible wiring configurations: in series at 3 A with a phase resistance of 2.4 Ω and inductance of 8.8 mH, or in parallel at 6 A with 0.6 Ω resistance and 2.2 mH inductance. It accepts a maximum driver voltage of 80 VDC to optimize current rise time and torque response. The rotor inertia of 470 g·cm² balances dynamic performance with low vibration. A standard 300 mm cable with AWG 22 (UL3266) cross-section ensures robust electrical connectivity, and detent torque remains below 90 mNm for minimal holding error.
Constructed to withstand harsh industrial environments, the motor carries an IP30 protection rating and can operate at up to 100 °C surface temperature without degradation. Its design complies with UL3266 cable standards, ensuring safety and regulatory adherence. The compact 80.5 mm motor length and lightweight profile simplify integration into confined machine layouts. Overall, the 80MPD5.300S000-01 offers superior repeatability, durability, and efficiency, enhancing productivity and reducing maintenance needs in automation systems.
