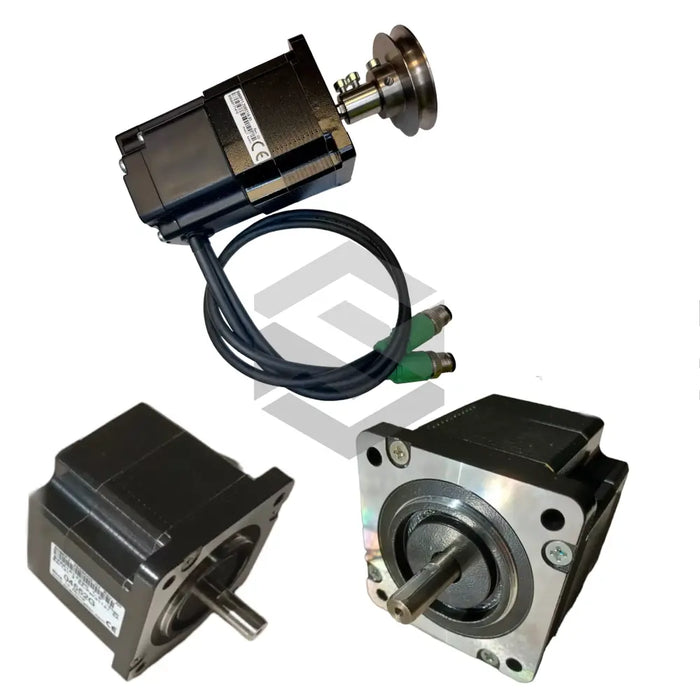

The B & R Automation 80MPF5.250S000-01 is a 2-phase hybrid stepper motor without encoder from the 80M Stepper Motors series, delivering 2.5 Nm stall torque and 3.5 Nm holding torque with a 1.8 degrees stepping angle. It features a 60 mm flange, IP30 rated protection, and operates at 5 A parallel wiring.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Current (parallel Wiring)
5 A
Current (series Wiring)
2.5 A
Detent Torque
<75 mNm
Flange Size
60 mm
Holding Torque
3.5 Nm
Motor Length
93.3 mm
Motor Type
2-phase hybrid stepper motor without encoder
Phase Inductance (parallel Wiring)
2.8 mH
Phase Inductance (series Wiring)
11.2 mH
Phase Resistance (parallel Wiring)
0.6 ?
Phase Resistance (series Wiring)
2.4 ?
Rated Protection
IP30
Rotor Inertia
920 gcm^2
Stall Torque
2.5 Nm
Stepping Angle
1.8 degrees
