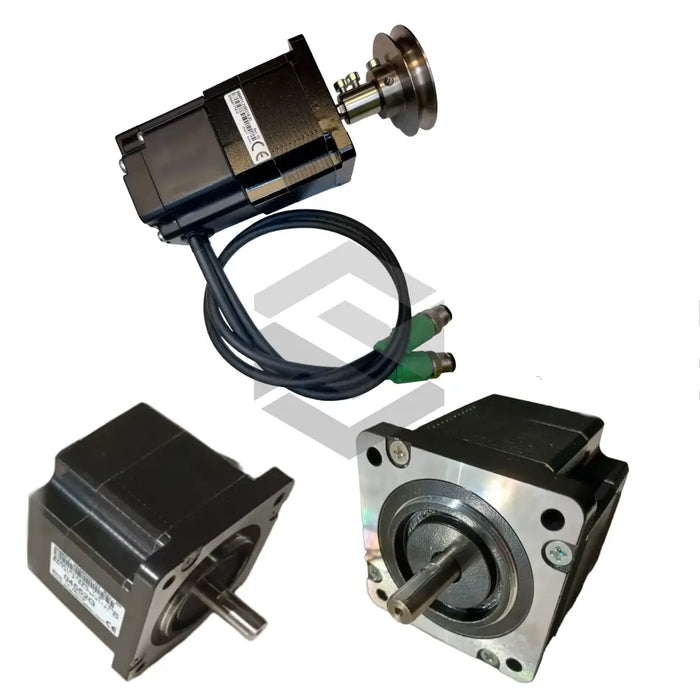

The B & R Automation 80MPH1.300S000-01 is a precision 2-phase hybrid stepper motor from the 80M Stepper Motors series, offering 4.0 Nm holding torque and a 1.8 degrees stepping angle. With an 86 mm flange, IP40 protection, operating from -20°C to 40°C, and max surface temp 100°C ensuring reliable motion control.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Average Operational Lifespan
20,000 hours
Detent Torque
<160 mNm
Flange Size
86 mm
Holding Torque
4.0 Nm
Maximum Surface Temperature
100 degrees C
Motor Length
66 mm
Motor Type
2-phase hybrid stepper motor
Operating Temperature Range
-20 degrees C to 40 degrees C
Phase Inductance (series)
12.9 mH
Phase Resistance (series)
1.7 ?
Rated Protection
IP40
Rotor Inertia
Approximately 1.31 kgcm^2
Stall Torque
2.9 Nm
Stepping Angle
1.8 degrees
Wiring Current
3 A (series) / 6 A (parallel)
