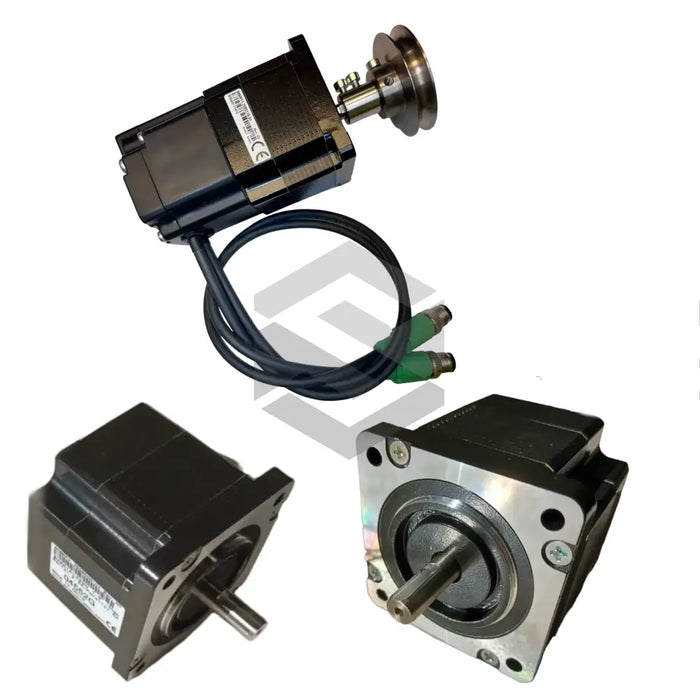

The 80MPH6.101S000-01 from B & R Automation offers a holding torque of 13.6 Nm and a flange size of 87.1 mm. Part of the 80M Stepper Motors series, this 2-phase hybrid stepper motor delivers a stall torque of 9.3 Nm and a stepping angle of 1.8°.
It features parallel wiring with a current rating of 10 A and a phase resistance ranging from 0.24 to 0.7 Ω for precise and reliable performance. The motor is rated IP40 for dust protection and has a length of 130 mm.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Average Operating Life
Approximately 20,000 hours
Cable Specifications
300 mm length; 22 AWG, UL 3266
Current Rating (parallel)
10 A
Flange Size
87.1 mm
Holding Torque
13.6 Nm
Maximum Surface Temperature
100 degrees C
Motor Length
130 mm
Motor Type
2-phase hybrid stepper motor
Phase Inductance (parallel)
Approximately 1.6 mH
Phase Resistance (parallel)
Approximately 0.24 ? to 0.7 ?
Protection Class
IP40
Stall Torque
9.3 Nm
Stepping Angle
1.8 degrees
Wiring Configuration
Parallel wiring only
