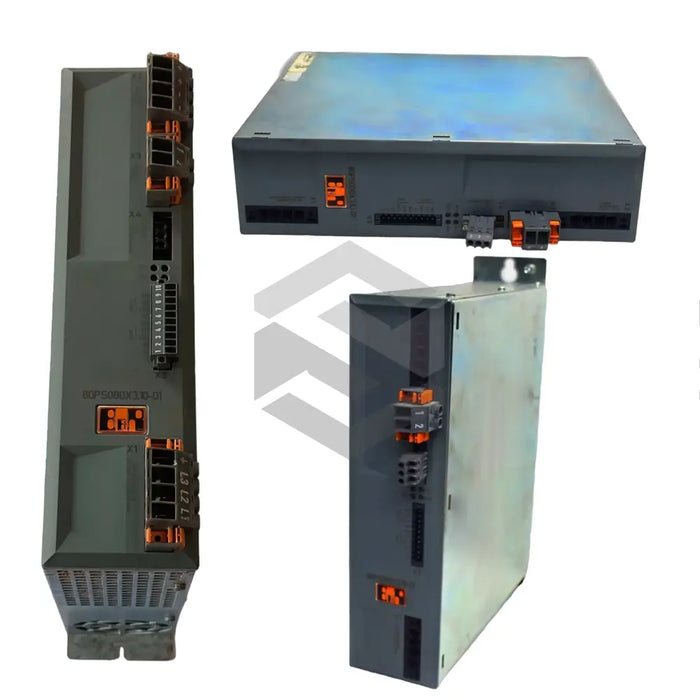

S image of 80PS080X3.10-01

80PS080X3.10-01

by B & R Automation
$2,283.82 - $2,791.98
$2,283.82
$2,283.82 - $2,791.98
$2,283.82

In Stock, Ships 1 - 3 Days

The 80PS080X3.10-01 by B & R Automation is a robust power supply module designed for industrial environments, offering exceptional performance and reliability. It supports an input voltage of 3x 380-480 VAC with a frequency of 50-60 Hz, handling currents of 3x 2.2A at 400VAC or 3x 1.8A at 480VAC in three-phase systems. With an output range of 24-80 VDC and a maximum power output of 1000 W, it delivers a continuous current of 16.6 A, capable of handling 20% current surges for 2 seconds. The module features adjustable chopper output (29-95 VDC) and incorporates short circuit, overload, and open circuit protections. It includes LED indicators for status monitoring and an internal fan for heat dissipation, ensuring an efficiency above 92% within a 0-50°C operational temperature range. Measuring 67.5 mm by 257 mm by 219 mm, this compact unit is an efficient and versatile solution for high-power industrial applications.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

B & R Automation

Model

80PS080X3.10-01

Maximum Current at 400VAC

3 x 2.2A

Maximum Current at 480VAC

3 x 1.8A

Output Voltage Range

24 to 80 VDC

Continuous Output

16.6 A

Maximum Output Power

1000 W

Current Surge Handling

20% for 2 seconds

Chopper Output Voltage Range

29-95 VDC

Efficiency

Normalization above 92%

Protection Features

Short circuit, overload, open circuit protection

LED Indicators

X2X Link status, module function, chopper status

Cooling

Internal controlled fan

Operating Temperature Range

0 to 50 degrees C

Dimensions

67.5 mm wide x 257 mm high x 219 mm deep

Applications

Industrial use
