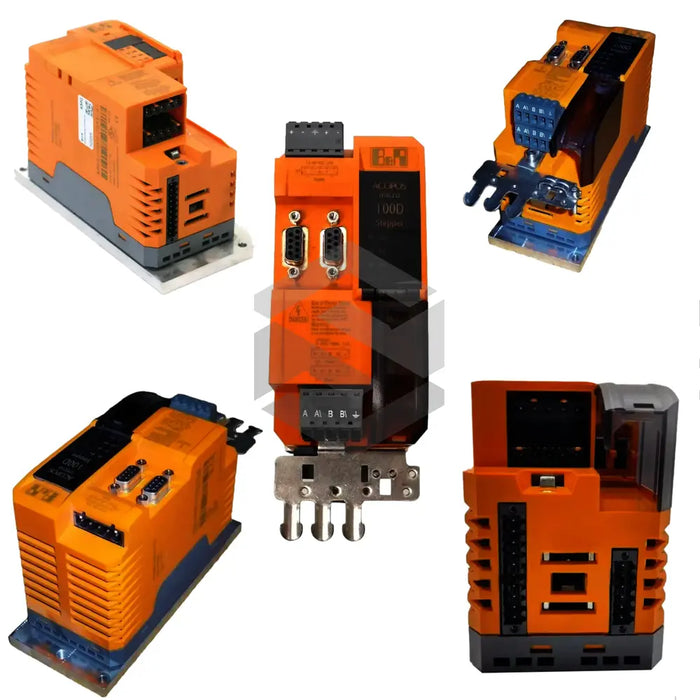

The 80SD100XD.C033-01 from B & R Automation is part of the 80SD Stepper Motor Modules series, operating on a 24 VDC nominal supply (max 30 VDC) with a nominal current of 10 A and peak of 15 A for 2 s. Featuring 38.5 kHz switching frequency, IP20 protection, 65×134×95 mm dimensions and 700 g weight, it includes 2 SSI encoder inputs for industrial automation.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
DC Bus Capacitance
940 μF
Digital Inputs
2 sink inputs, 24 VDC, trigger
Dimensions (W×H×D)
65×134×95 mm
Enable Input Delay
450 ms off, 500 ms on
Enable Input Thresholds
Low <5 VDC, High >15 VDC
Encoder Inputs
2 SSI absolute, max cable 25 m
Nominal Current
10 A
Operating Temperature
0 to 45 °C
Overcurrent Limitation
8 A
Overload & Short-Circuit Protection
Built-in
Overvoltage Cutoff
>95 VDC
Peak Current per Module
30 A
Peak Current per Motor
15 A for 2 s
Step Resolution
256 microsteps/full step
Supply Voltage
24 VDC Nominal (Max 30 VDC)
Switching Frequency
38.5 kHz
Undervoltage Cutoff
<18 VDC
Weight
700 g
