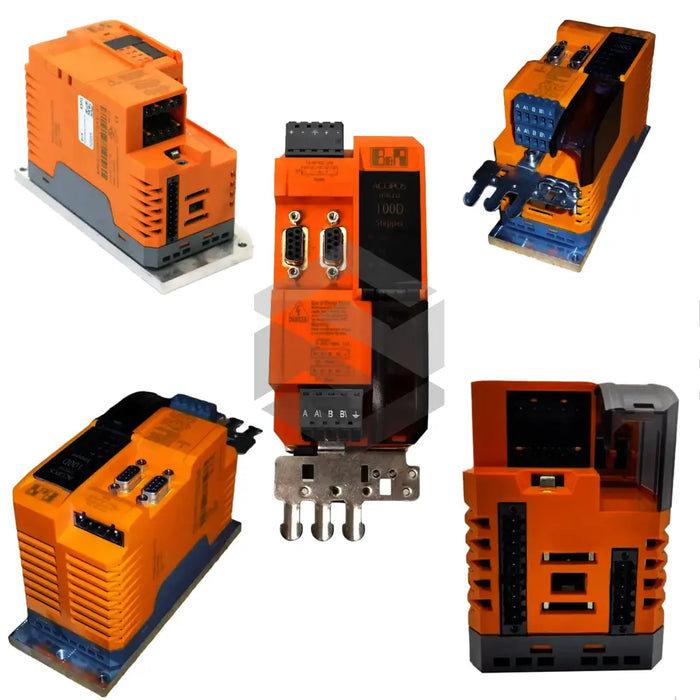

80SD100XS.C0XX-01

by B & R Automation
$3,314.34 - $3,645.77
$3,314.34
$3,314.34 - $3,645.77
$3,314.34

The 80SD100XS.C0XX-01 from B & R Automation offers a switching frequency of 38.5 kHz and a peak motor current of 15 A for 2 s. Part of the 80SD Stepper Motor Modules series, it supports a 24–64 VDC supply range ±25 % and delivers 256 microsteps per full step resolution.

It features two 24 VDC trigger-capable digital inputs, one 24 VDC/1 A digital output, and overvoltage and undervoltage protection. Communication uses an X2X Link 4-pin connector with a 250 µs minimum cycle time.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Communication Interface

X2X Link via 4-pin male connector

CPU Power Consumption

Max 6 W

CPU Supply Voltage

24 VDC ±25%, not isolated

DC Bus Capacitance

940 μF

Digital Inputs

2 inputs, 24 VDC sink, trigger‑capable

Digital Output

1 output, 24 VDC, 1 A

Max Motor Current (2 s)

15 A peak

Minimum Cycle Time

250 μs

Motor Nominal Current

10 A peak

Overvoltage Cutoff Voltage

>95 VDC

Step Resolution

256 microsteps per full step

Supply Voltage Range

24–64 VDC ±25%

Switching Frequency

38.5 kHz

Undervoltage Cutoff Voltage

<18 VDC
