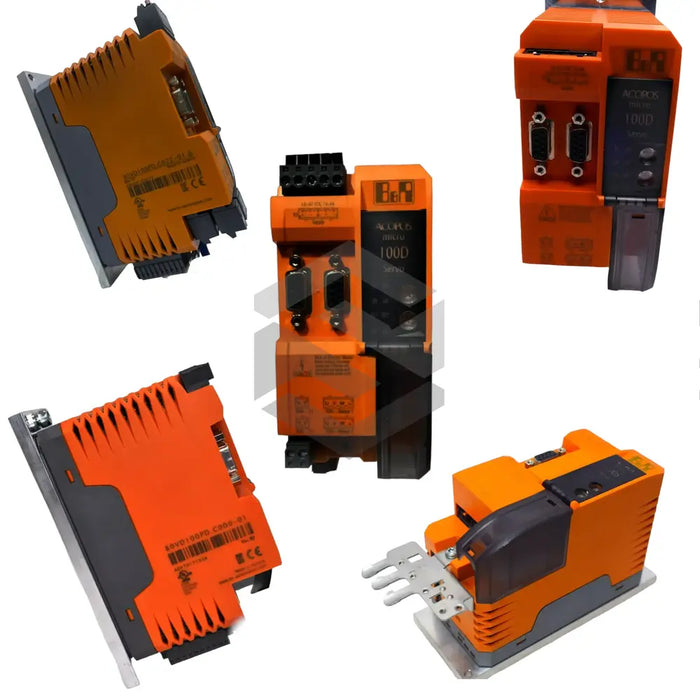

The B & R Automation 80VD100PD.C033-01 is an inverter module in the 80VD Inverter Modules series supporting 24-64 VDC ±25% input. It features selectable 5/10/20/40 kHz switching frequency, 940 µF DC bus capacitance, and dual SSI absolute encoder inputs with 5 V ±5%/250 mA supply. Peak output of 30 A, motor current up to 10.6 A RMS, robust overload, short-circuit, undervoltage and overvoltage protection, in a compact 65×134×95 mm housing at 750 g.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Available switching frequencies
5, 10, 20, 40 kHz
DC bus capacitance
940 µF
Digital input voltage
24 VDC (nom), 30 VDC (max)
Dimensions (W×H×D)
65×134×95 mm
Enable input
24 VDC ±25%, 60 mA, 500 ms delay
Encoder inputs
2 SSI absolute, max cable length 25 m
Encoder supply output
5 V ±5%, 250 mA
Max current per module
30 A peak
Max current per motor
10.6 A RMS / 15 A peak
Motor connections
2
Motor current (≤20 kHz)
8 A RMS / 11.3 A peak
Motor current (40 kHz, >45°C)
6.5 A RMS / 9.2 A peak
Open‑circuit monitoring threshold
<100 mA
Overload & short‑circuit protection
Yes
Overvoltage cutoff
>95 VDC
Power supply input
24–64 VDC ±25%
Undervoltage cutoff
<18 VDC
Undervoltage monitoring threshold
>23.5 V
Weight
750 g
