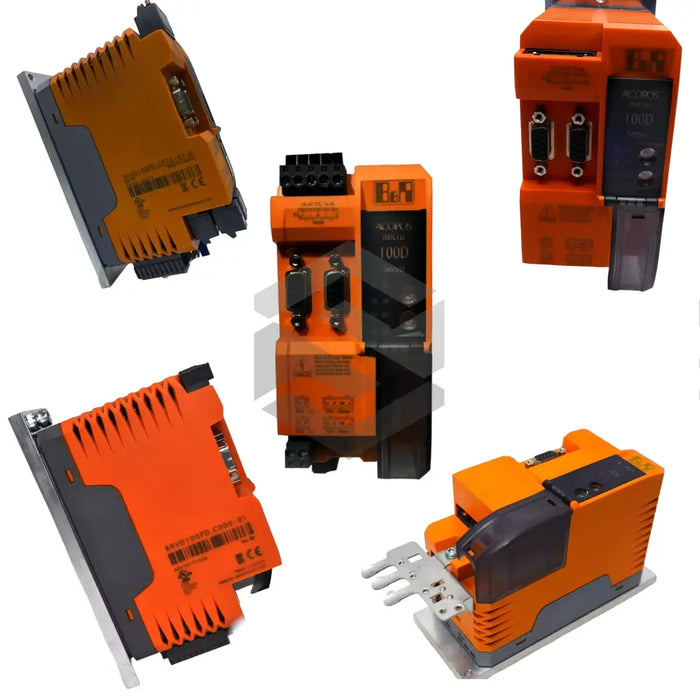

S image of 80VD100PD.C144-01

80VD100PD.C144-01

by B & R Automation
$1,056.77 - $6,629.19
$1,056.77
$1,056.77 - $6,629.19
$1,056.77

In Stock, Ships 1 - 3 Days

The 80VD100PD.C144-01, crafted by B & R Automation, is an advanced ACOPOS micro servo drive tailored for industrial precision in motor management. It features versatile switching frequencies of 5, 10, 20, and 40 kHz, accommodating diverse operational needs. Equipped with built-in protections, the drive includes undervoltage cutoff at <18 VDC and overvoltage cutoff at >95 VDC, ensuring safe and stable functionality. It offers reverse polarity protection and voltage measurement for enhanced monitoring. Delivering an RMS current of 8 A (up to 20 kHz) and a peak of 11.3 A, it supports applications requiring robust performance. The drive manages motor currents up to 10.6 A RMS and 15 A peak, with a maximum motor line length of 25 meters. Operating on 24 VDC, it includes a 940 uF DC bus capacitor arrangement and an integrated brake system for precise control. The drive's flexibility and safety features make it ideal for demanding industrial environments.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

B & R Automation

Model

80VD100PD.C144-01

Type

ACOPOS Micro Servo Drive

Application

Industrial

Switching Frequencies

5, 10, 20, 40 kHz

Undervoltage Cut Off

<18 VDC

Overvoltage Cut Off

>95 VDC

Nominal RMS Current

8 A (up to 20 kHz)

Peak Current

11.3 A

Maximum Current Per Motor (RMS)

10.6 A

Maximum Current Per Motor (Peak)

15 A

Motor Line Length Support

25 meters

DC Bus Capacitors

940 uF

Operating Voltage

24 VDC

Continuous Current Per Connection

1 A

Encoder Power Supply Limit

350 mA at 5 VDC

Digital Inputs Voltage Range

24 VDC nominal, up to 30 VDC

Integrated Brake System

Yes

Weight

0.9 kg
