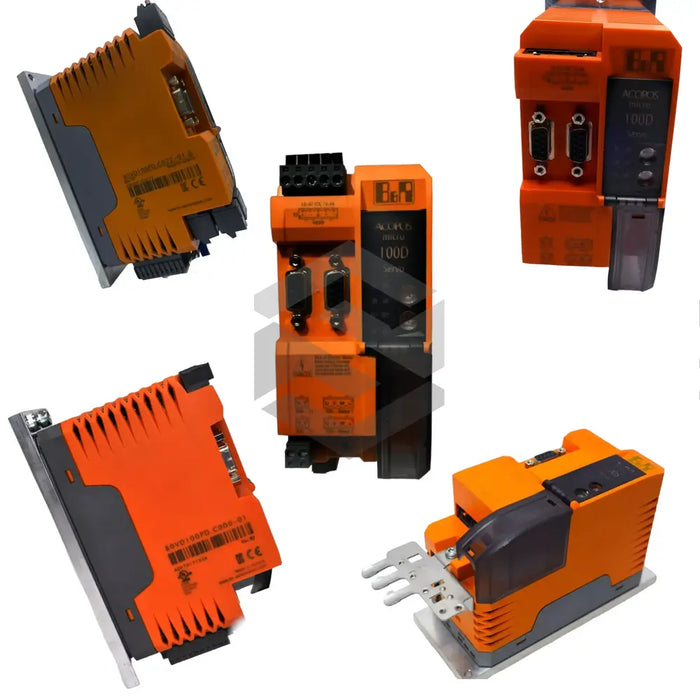

S image of 80VD100PD.C188-01

80VD100PD.C188-01

by B & R Automation
$2,933.12 - $2,933.12
$2,933.12
$2,933.12 - $2,933.12
$2,933.12

In Stock, Ships 1 - 3 Days

The 80VD100PD.C188-01 from B & R Automation features a nominal input voltage of 24 VDC and supports a maximum motor current of 10.6 A RMS. Part of the 80VD Inverter Modules series, this module offers switching frequency options of 5, 10, 20, and 40 kHz and delivers up to 15 A peak current for short tasks.

It includes two LinMot encoder inputs for accurate motor position feedback and operates within a temperature range of 0 to 45 °C. The compact unit measures 65×134×95 mm and weighs 780 g.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

DC bus capacitance

940 µF

Encoder inputs

2 × LinMot encoder inputs

Input current at 24 V

≈7.5 mA

Input resistance

≈3.2 kΩ

Max current per module

30 A peak

Max input voltage

30 VDC

Max motor current

10.6 A RMS / 15 A peak

Mechanical dimensions

65 × 134 × 95 mm

Modulation voltage to ground

Max 38 V

Nominal input voltage

24 VDC

Nominal motor current (≤20 kHz)

8 A RMS / 11.3 A peak

Operating temperature

0 to 45 °C

Storage temperature

-25 to 55 °C

Switching delay (fall)

53 µs

Switching delay (rise)

52 µs

Switching frequency options

5, 10, 20, 40 kHz

Switching thresholds

Low <5 VDC; High >15 VDC

Weight

780 g
