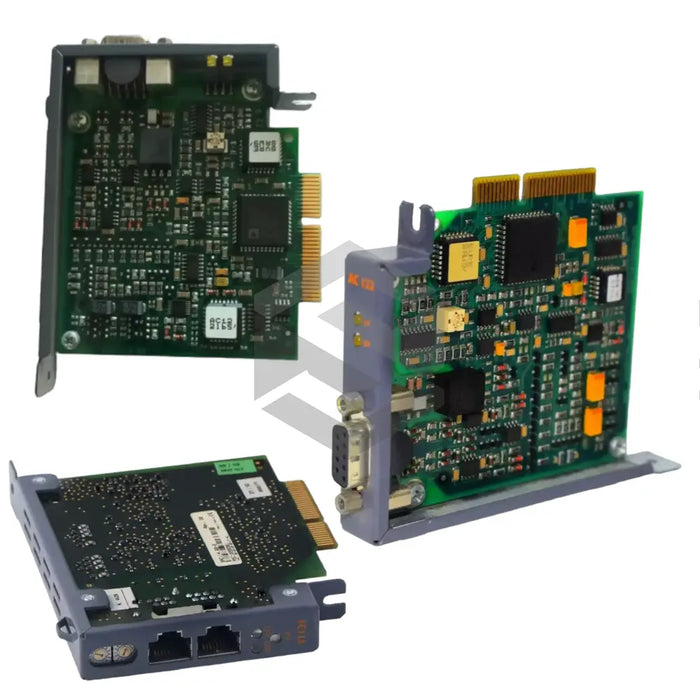

S image of 8AC122.60-2

8AC122.60-2

by B & R Automation
$561.00 - $671.22
$561.00
$561.00 - $671.22
$561.00

In Stock, Ships Fast

The 8AC122.60-2 ACOPOS plug-in module, crafted by B & R Automation, is engineered for excellence in industrial motion control systems. This module offers superior power conversion and precise signal processing, essential for efficient motor control in automation facilities. It supports high-accuracy resolver and sine/cosine inputs with differential signal transmission, allowing a 14-bit angular position resolution per revolution for detailed feedback. Capable of handling cables up to 100 meters, it operates at a power consumption of 2.5 W. Featuring UP/DN LEDs for status monitoring and differential voltage outputs of 3.4 V at 10 kHz, the unit supports a maximum current of 50 mA. The resolver input functions at a 10 kHz frequency with a voltage range of 3 to 7 Vrms. Certified by CE, UKCA, UL, and KC standards, it operates between 5°C and 40°C, handling up to 85% humidity. Note that resolver inputs lack electrical isolation, unlike the sine/cosine inputs.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

B & R Automation

Model

8AC122.60-2

Application

Motion control systems

Power Consumption

2.5 W

Input Frequency

10 kHz

Input Voltage Range

3 to 7 Vrms

Angular Position Resolution

14 bits per revolution

Maximum Cable Length

100 meters

Typical Voltage Output

3.4 V

Maximum Output Current

50 mA

Bandwidth

2.5 kHz

Frequency

10 kHz

Temperature Range

5°C to 40°C

Maximum Temperature

55°C

Humidity Range

5% to 85%

Electrical Isolation

Not provided for resolver inputs

Common-Mode Voltage Level

Up to 20 V

Standards

CE, UKCA, UL (cULus E225616), KC

LED Indicators

UP/DN LEDs for status indication

Signal Transmission

Differential

Encoder Monitoring

Available
