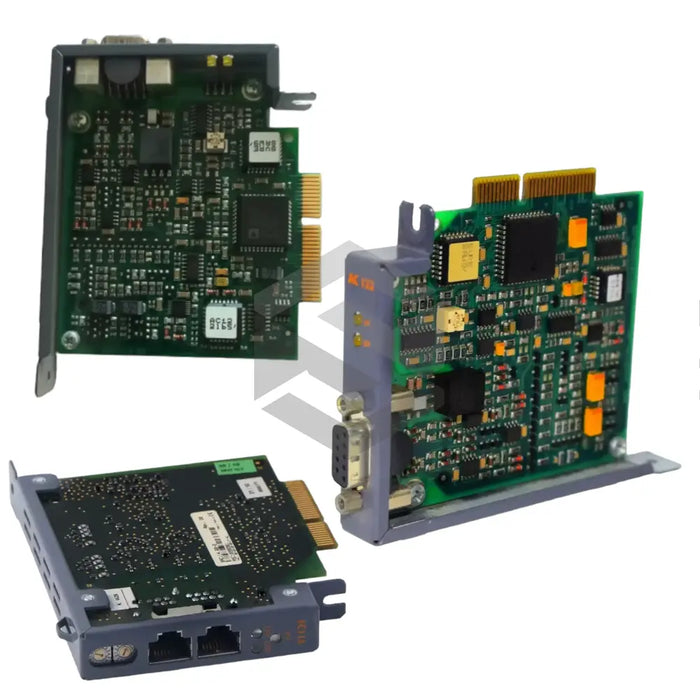

series image of 8AC140.61-3

8AC140.61-3

by B & R Automation
$2,794.43 - $2,794.43
$2,794.43
$2,794.43 - $2,794.43
$2,794.43
In Stock, Ships 3 - 5 Days
The 8AC140.61-3 ARNC0 control unit by B & R Automation is a versatile and reliable component designed for industrial automation applications. It features an Intel-compatible CPU with a 100 MHz clock speed, providing robust performance for complex control tasks. The unit includes 32 MB of DRAM, 32 KB of SRAM, and utilizes CompactFlash for application memory, enhancing data flexibility. Connectivity options include RS232, CAN, Ethernet (100 Base-T), and Profibus DP Slave interfaces, along with three digital I/O points (24 VDC inputs/500mA outputs) and an analog input that handles +10 V to -10 V signals. It requires a 24 V DC supply and uses a 0TB708 terminal block for computer connections, both of which are sold separately. With dimensions of 257 mm in height and a weight of 2.5 kg, this control unit is well-suited for a variety of standard control panel layouts and demanding industrial environments.
30 Day Warranty
Technical Specifications
  • Part Number: 8AC140.61-3
  • Manufacturer: B & R Automation
  • CPU: Intel compatible
  • CPU Speed: 100 MHz
  • DRAM: 32 megabytes
  • SRAM: 32 kilobytes
  • Application Memory: CompactFlash removable
  • RS232 Interface: 1
  • CAN Interface: 1
  • Ethernet Interface: 100 Base-T
  • Profibus DP Slave Interface: 1
  • Digital I/O Points: 3
  • Digital I/O Voltage: 24 VDC
  • Digital I/O Output Current: 500mA
  • Analog Input Range: +10 V to -10 V
  • Terminal Block: 0TB708 (separate purchase)
  • Dimensions: 257 mm height
  • Weight: 2.5 kg
  • Supply Voltage: 24 V DC ±25%
