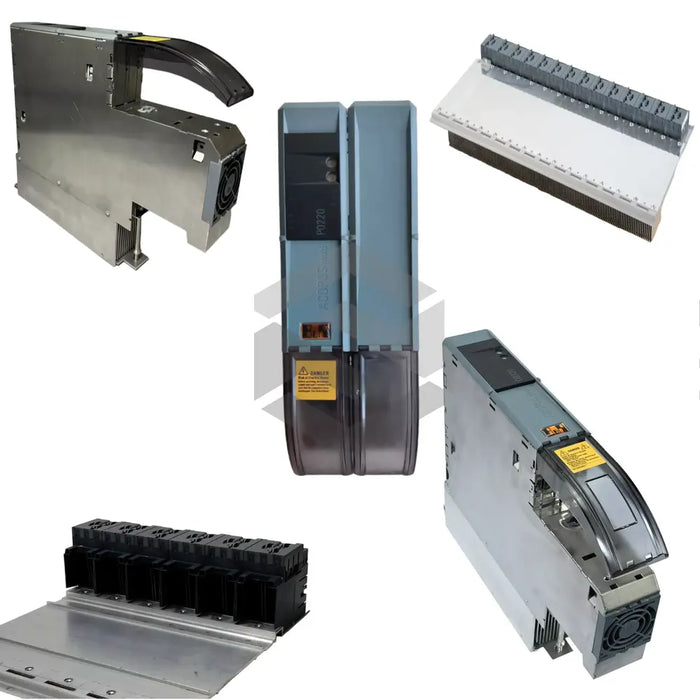

series image of 8B0C0160HC00.001-1

8B0C0160HC00.001-1

by B & R Automation
$5,298.67 - $5,298.67
$5,298.67
$5,298.67 - $5,298.67
$5,298.67
In Stock, Ships 3 - 5 Days
The 8B0C0160HC00.001-1 ACOPOS multi auxiliary supply module from B & R Automation is a robust and versatile power supply unit designed for industrial automation applications. This module delivers a consistent 24 VDC output with a continuous power capability of 400 W and a continuous current capacity of 16 ADC. It operates within a DC bus voltage range of 260 to 800 VDC and is protected against overtemperature conditions. Suitable for high-altitude and harsh environments, it ensures reliable performance up to 4000 meters without power reduction at 40°C or below. The module supports dual 24 VDC outputs and features low residual ripple for voltage stability. With IP20 protection and flexible mounting options, its compact design (53 mm width, 317 mm height) coupled with a cold plate option facilitates efficient cooling in space-constrained installations. Moreover, it ensures electrical safety with SELV/PELV compliance and dielectric strength of ~50 VDC to ground.
30 Day Warranty
Technical Specifications
  • Manufacturer: B & R Automation
  • Product Name: 8B0C0160HC00.001-1 ACOPOS Multi Auxiliary Supply Module
  • Output Voltage: 24 VDC
  • DC Bus Voltage Range: 260-800 VDC
  • Continuous Power: 400 W
  • Continuous Current Output: 16 ADC
  • Overtemperature Protection: Yes
  • Altitude Operation: Reduction in continuous power above 500 meters; 40 W drop per 1000 meters
  • SELV/PELV Requirements: Yes
  • Dielectric Strength: 50 VDC to ground
  • Startup Time: 5-20 ms
  • Residual Ripple: 50 mV
  • Mounting Options: Vertical and horizontal
  • Protection Standard: IP20
  • Operational Altitude: Up to 4000 meters with no continuous power reduction at 40°C
  • Output Ports: Two 24 VDC outputs
  • Startup Delay: 1 second
  • Dimensions: Width 53 mm, Height 317 mm
  • Weight: 2.7 kg
  • Cooling Option: Cold plate option
