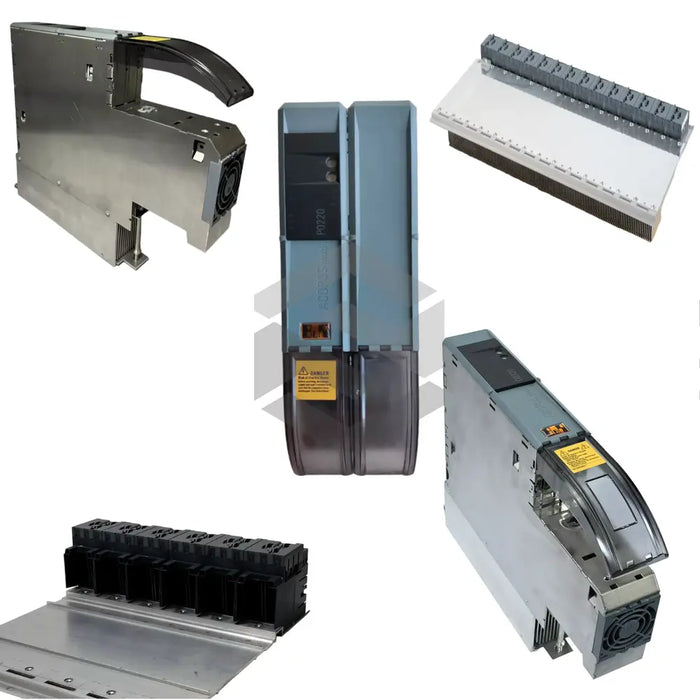

S image of 8B0P0220HC00.001-1

8B0P0220HC00.001-1

by B & R Automation
$4,544.37 - $4,998.81
$4,544.37
$4,544.37 - $4,998.81
$4,544.37
The 8B0P0220HC00.001-1 is a module from B&R Automation's advanced 8B0 Series, part of their ACOPOSmulti product line. Known for reliability, this series offers modular servo drives for complex industrial automation applications such as robotics, metal forming, and material handling. The 8B0P0220HC00.001-1 features feed-through mounting with cold plate cooling, optimized for space efficiency and IP-20 protection standards. It supports mains input voltage ranging from 3x 380 to 3x 500 VAC with a frequency of 50/60 Hz, handling a maximum installed load of 15.6 kVA. The module has an inrush current of 10 A at 400 VAC and requires a switch-on interval of over 120 seconds. It delivers a continuous power of 8 kW, weighs 4.7 kg, and operates on a nominal DC Bus Voltage between 537 and 707 VDC. The product is highly precise, energy-efficient, and designed for multi-axis movement management.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Series

8B0 Series

Manufacturer

B&R Automation

Product Line

ACOPOSmulti

Part Number

8B0P0220HC00.001-1

Product Type

Controller Module

Mounting Method

Feed Through Mounting

Cooling Method

Cold Plate

Mains Input Voltage

3x 380 to 3x 500 VAC ±10%

Frequency

50/60 Hz ±4%

Installed Load

Maximum 15.6 kVA

Inrush Current at 400 Vac

10 A

Switch On Interval

>120 seconds

Continuous Power

8 kW

Weight

4.7 kg

Nominal DC Bus Voltage

537 to 707 VDC

Protection Standard

IP-20
