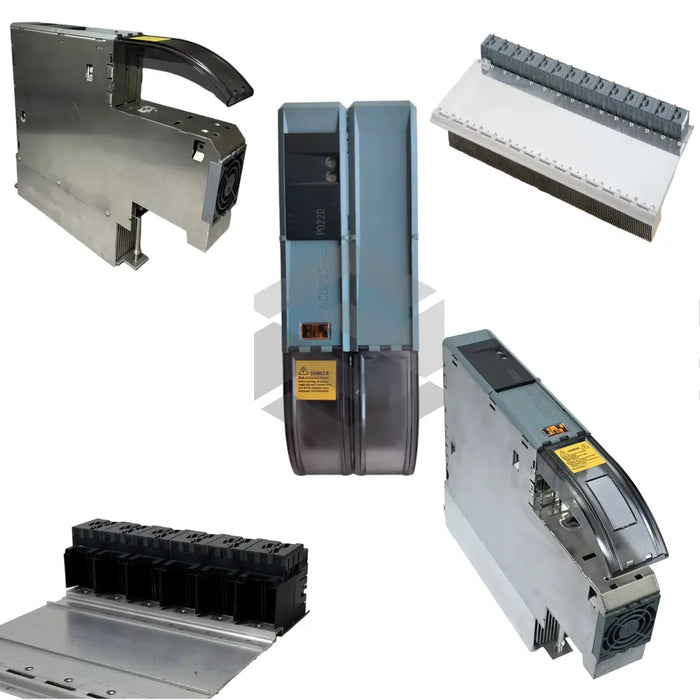

series image of 8B0P0440HC00.000-1

8B0P0440HC00.000-1

by B & R Automation
$13,134.27 - $13,134.27
$13,134.27
$13,134.27 - $13,134.27
$13,134.27
In Stock, Ships 3 - 5 Days
The 8B0P0440HC00.000-1 multi-power supply module by B&R Automation is engineered for high-performance automation applications, featuring a voltage range of 3x 380 to 3x 500 VAC ±10% and a nominal DC voltage range of 537 to 707 VDC. With a 44 A current rating and a continuous power output of 16 kW, it ensures reliable operation under heavy loads. Designed for seamless integration with Automation Studio, it easily connects with controllers and peripheral devices. Its energy-efficient design limits power consumption to 12 W and supports a 24 VDC power supply for control electronics. The compact dimensions—106.5 mm width, 317 mm height, and depths of 212 mm or 209 mm—allow for versatility in mounting. Capable of functioning in temperatures from 5 to 40°C, it is optimally designed for harsh industrial environments, backed by IP20 protection against dust and large particles, ensuring durability and performance stability.
30 Day Warranty
Technical Specifications
  • Manufacturer: B & R Automation
  • Model: 8B0P0440HC00.000-1
  • Current Rating: 44 A
  • AS Enabled: Yes
  • Nominal Voltage: 537 to 707 VDC
  • Continuous Power Rating: 16 kW
  • Maximum Power Consumption: 12 W
  • Width: 106.5 mm
  • Height: 317 mm
  • Depth (Cold Plate Mounting): 212 mm
  • Depth (Pass-Through Mounting): 209 mm
  • Operating Temperature Range: 5 to 40 degrees C
  • IP Level of Protection: IP 20
