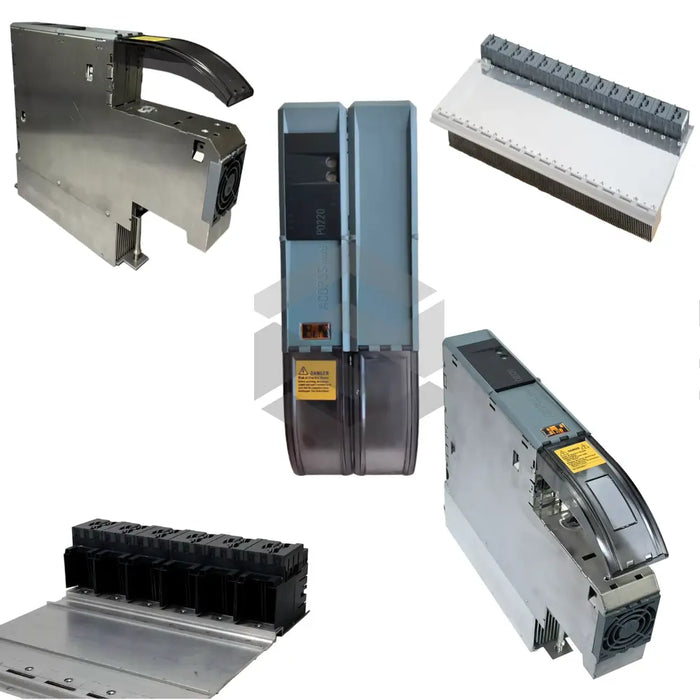

S image of 8B0W0096H000.000-1

8B0W0096H000.000-1

by B & R Automation
$1,372.25 - $1,372.25
$1,372.25
$1,372.25 - $1,372.25
$1,372.25

In Stock, Ships 1 - 3 Days

The B & R Automation 8B0W0096H000.000-1 external braking resistor from the 8B0 ACOPOS Multi Power Supplies series delivers reliable energy dissipation in industrial automation. With a nominal power rating of 960 W and 25 Ohms resistance, it handles a Current of 80 A and operates up to 850 V DC. Measuring 80 x 398 x 200 mm and weighing 6 kg, it features a Power Loss of 25 W, Emc Level Class A immunity, and a Rated Leakage Current of 35 mA. Designed for wall mounting with IP21 protection, tension spring terminals, shielded gland, and RoHS compliance, it withstands ambient temperatures from -40 to 90 °C. Certified CE, KC, cULus and tested to 4000 V AC isolation, it ensures safe, high-performance braking support.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Ambient Temperature

-40 to 90 °C

Cross-section Of Conductor

25 mm²

Current

80 A

Dimensions

80 x 398 x 200 mm

Emc Level

Class A

Frequency

50/60 Hz

Power Loss

25 W

Rated Leakage Current

35 mA

Weight

6 kg
