series image of 8BAC0120.001-2

8BAC0120.001-2

by B & R Automation
$1,296.98 - $1,296.98
$1,296.98
$1,296.98 - $1,296.98
$1,296.98
In Stock, Ships 1 - 2 Days

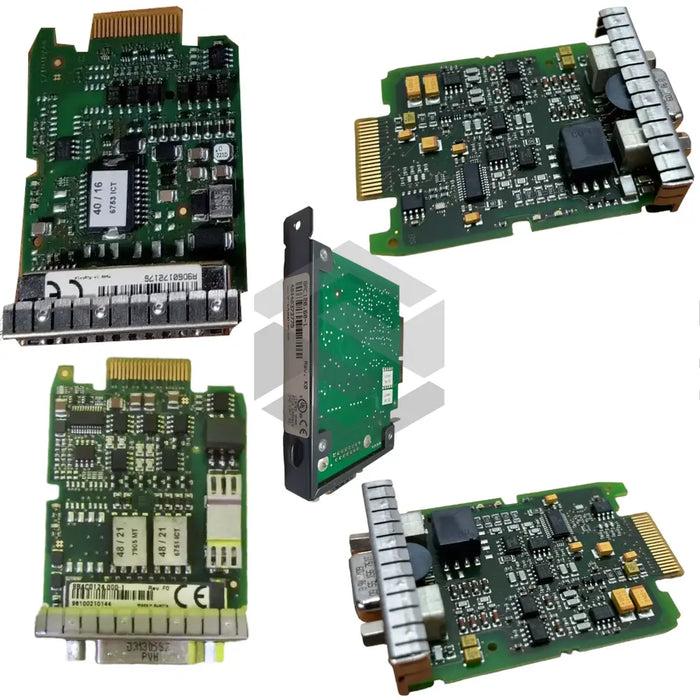

The 8BAC0120.001-2, produced by B & R Automation, is an EnDat 2.2 encoder interface designed for ACOPOSmulti modules, offering precise position and speed control in motion applications. Featuring an embedded parameter chip, it simplifies configuration by storing essential motor parameters, enhancing system integration. Encoders connect via a 9-pin male DSUB connector, ensuring secure communication. The module operates in temperatures of 5 to 40°C, with a maximum threshold of 55°C in harsh conditions, aided by overload and short-circuit protection for durability and consistent performance. Delivering a typical output voltage of 12.5 V and a load capacity of 350 mA, it accommodates various encoder types. RS485 protocol supports reliable data exchange. The 8BAC0120.001-2 meets CE, UKCA, cULus, and KC standards, ensuring compliance and safety across diverse industrial environments.
30 Day Warranty
Technical Specifications
  • Product Code: 8BAC0120.001-2
  • Manufacturer: B&R Automation
  • Product Type: EnDat 2.2 encoder interface
  • Compatible Modules: ACOPOSmulti modules
  • Connector Type: 9-pin male DSUB
  • Operating Temperature Range: 5 to 40 degrees C
  • Maximum Operating Temperature: 55 degrees C
  • Protection Features: Overload and short-circuit protection
  • Typical Output Voltage: 12.5 V
  • Load Capacity: 350 mA
  • Signal Transmission: RS485
  • Standards Compliance: CE, UKCA, cULus, KC
  • Embedded Feature: Embedded parameter chip
