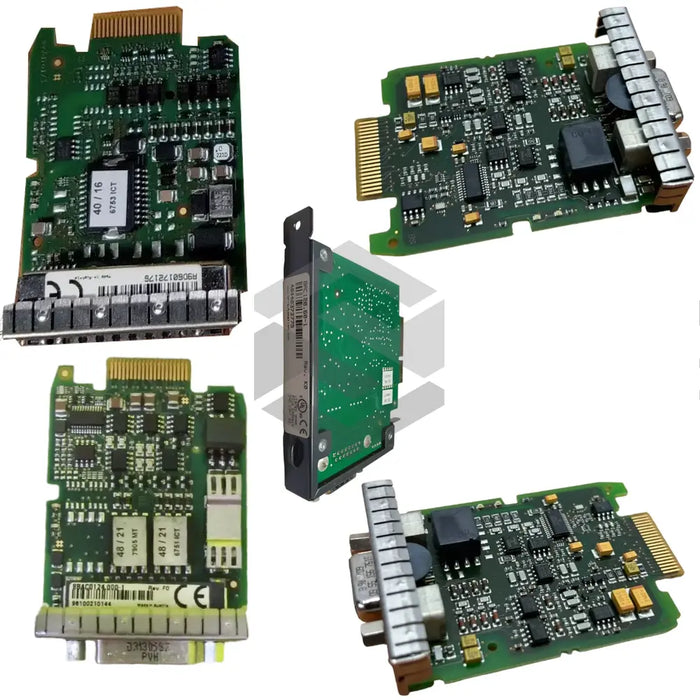

series image of 8BAC0122.000-1

8BAC0122.000-1

by B & R Automation
$1,104.86 - $1,104.86
$1,104.86
$1,104.86 - $1,104.86
$1,104.86
In Stock, Ships 3 - 5 Days
The 8BAC0122.000-1 resolver interface module by B&R Automation is designed for ACOPOSmulti systems to provide high-resolution encoder monitoring at a 10 kHz response rate. This module supports accurate positioning and motion control by connecting resolvers and continuously monitoring their performance. It accommodates encoder cable lengths of up to 100 meters, ensuring flexible installations while maintaining signal integrity. The module's encoder power supply outputs at 3 V, with a maximum output current of 50 mA. It features three analog inputs with a 14-bit resolution for precise input measurement and has an input impedance of 10.4 k? - j 11.1 k?, suitable for diverse sensor signals. A 9-pin male DSUB connector facilitates reliable encoder communication. The module effectively operates in temperatures ranging from 5 to 40 degrees Celsius and can withstand up to 55 degrees Celsius, making it ideal for reliable, high-performance applications.
30 Day Warranty
Technical Specifications
  • Manufacturer: B & R Automation
  • Product: 8BAC0122.000-1 Resolver Interface Module
  • Compatibility: ACOPOSmulti Systems
  • Response Rate: 10 kHz
  • Encoder Cable Length: 100 meters
  • Encoder Power Supply Voltage: 3 V
  • Analog Inputs: Three
  • Digital Converter Resolution: 14-bit
  • Input Impedance: 10.4 k? - j 11.1 k?
  • Maximum Output Current: 50 mA
  • Connector Type: 9-pin male DSUB
  • Operating Temperature Range: 5 to 40 degrees C
  • Maximum Temperature Limit: 55 degrees C
