8BCH0015.1312A-0

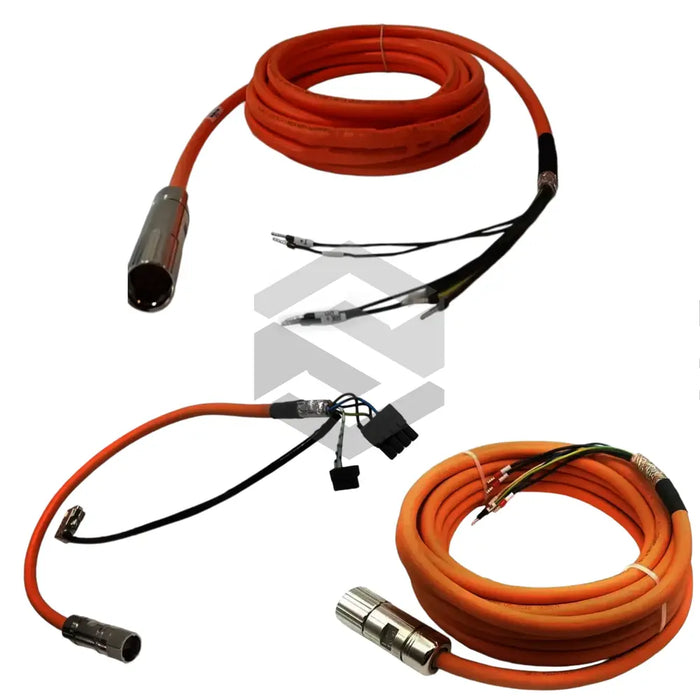

The B & R Automation 8BCH0015.1312A-0 cable is a high-performance member of the CM16 Motor Cables series, engineered for reliable power and signal transmission in demanding industrial automation applications. This 15 m cable assembly is optimized to support a rated power of 1.5 kW and a rated speed of 3000 rpm, delivering a continuous torque of 4.78 Nm while leveraging natural convection cooling. Fabricated with a robust PUR outer jacket, the 8BCH0015.1312A-0 balances durability with flexibility, providing exceptional resistance to oils, chemicals, and environmental wear. The cable meets an overall protection rating of IP65, ensuring reliable operation in harsh factory conditions and maintaining signal integrity under mechanical stress. In addition, the integrated 13-pin hybrid connector simplifies system wiring and enhances maintenance efficiency in dynamic drive environments.
The cable’s mechanical and electrical characteristics are defined by a comprehensive suite of technical specifications. It features an outer jacket material: PUR in an outer jacket color: Orange similar to RAL 2003 flat finish for visual compliance and identification. The constructed shielding system comprises tinned copper braiding with optical coverage of >85% combined with an internal foil shield to suppress electromagnetic interference. Conductor performance is guaranteed by power lines conductor resistance: ≤5 Ω/km and four power lines with PP wire insulation, complemented by two supply lines of 1 mm² conductor cross-section to maintain auxiliary power distribution. The cable sustains a test voltage (wire-wire): 4 kV for dielectric integrity and weighs 5.8 kg, balancing manageable mass with structural strength. The mechanical flexibility is quantified by a bend radius (single bend): >48 mm, enabling installation in confined or dynamic spaces without compromising cable life.
Operational characteristics are optimized for continuous movement in variable thermal environments. The 8BCH0015.1312A-0 operates reliably over an ambient temperature (moving): -20 °C to +90 °C range, accommodating both cold startup and high-heat manufacturing processes. Its natural convection cooling mechanism eliminates the need for external fans or liquid cooling loops, reducing system complexity and maintenance overhead. The cable retains its mechanical and electrical properties under continuous flex cycles, ensuring stable torque delivery and signal fidelity in servo motor and axis drive applications. Tested to withstand rigorous mechanical stress, the assembly upholds IP66/67 when connected at the hybrid connector interface, providing dust-tight sealing and protection against powerful water jets or temporary immersion.
System integration of the 8BCH0015.1312A-0 is streamlined by the 13-pin female Speedtec hybrid motor connector, which simplifies plug-and-play installation with B & R drive controllers and compatible servo amplifiers. The cable’s design aligns with industry standards for industrial automation, enabling rapid deployment in CNC machinery, robotic manipulators, packaging lines, and pick-and-place equipment. By combining a resilient PUR jacket, advanced shielding, and a robust connector sealing system, this motor cable enhances uptime and reduces maintenance intervals. The 8BCH0015.1312A-0 is ideally suited for integrators and machine builders seeking reliable power delivery and signal integrity in harsh production environments.
