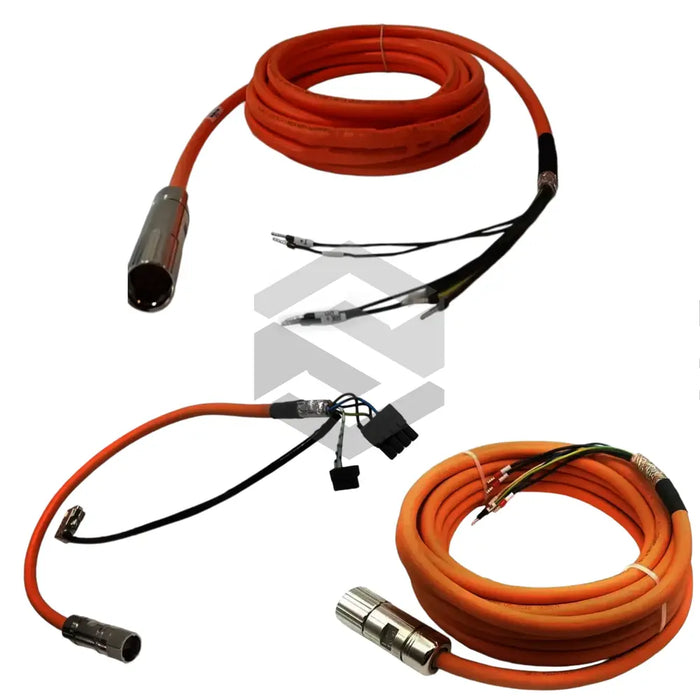

S image of 8BCM0001.10360-0

8BCM0001.10360-0

by B & R Automation
$860.70 - $860.70
$860.70
$860.70 - $860.70
$860.70

In Stock, Ships 1 - 3 Days

The 8BCM0001.10360-0 cable from B & R Automation is part of the CM16 Motor Cables series. It features a TPU outer jacket, a tinned copper braid and foil shield with >85% coverage and a cross section of 4x 0.75 mm2 + 2x 2x 0.34 mm2. Equipped with a 9-pin female series 915 power connector rated up to 1000 VAC, it offers an insulation resistance of ≥500 MΩkm and oil resistance per HD 22.10 appendix A, DIN EN 60811-404. Measuring 1 m and weighing 0.09 kg, its bend radius exceeds 32 mm.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Cable cross section

4x 0.75 mm² + 2x 2x 0.34 mm²

Cable durability

Oil resistance per HD 22.10 appendix A, DIN EN 60811-404

Cable length

1 m

Cable shield

Tinned copper braiding, optical coverage >85% and foil shield

Cable stranding

With filler elements and foil shield

Connector mating cycles

<500

Connector type

9-pin female series 915 power connector

Insulation resistance

≥500 MΩkm

Operating voltage

Max. 1000 VAC (UL)

Outer jacket material

TPU

Single bend radius

>32 mm

Weight

0.09 kg
