8BCM0025.1111A-0

Name: 8BCM0025.1111A-0
Brand: B & R Automation
Price: 3870.88 USD
Availability: InStock

by B & R Automation

$3,870.88 - $3,870.88

$3,870.88

$3,870.88 - $3,870.88

$3,870.88

In Stock, Ships Fast

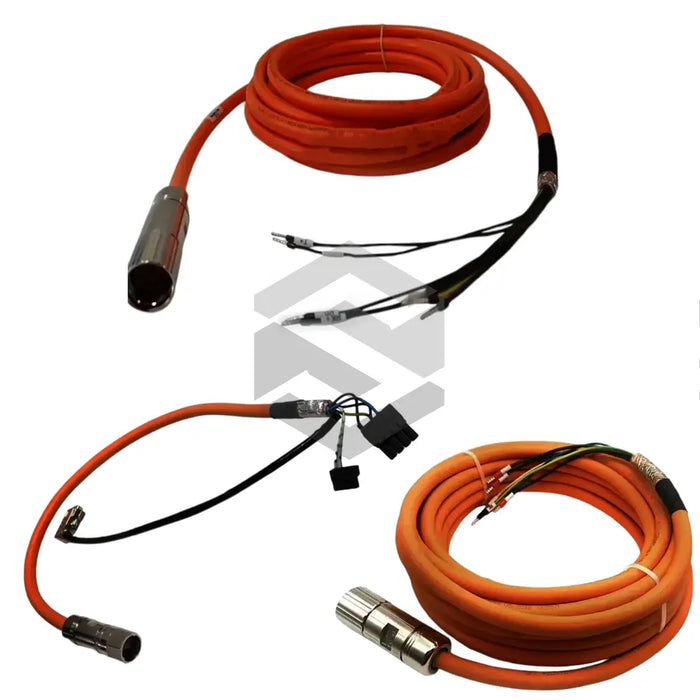

The B & R Automation 8BCM0025.1111A-0 motor cable is an industrial-grade solution designed for high-voltage motor applications within the CM16 Motor Cables series from B & R Automation. This robust assembly features a 4x 1.5 mm² + 2x 2x 0.75 mm² cable cross section and delivers a max. 1000 VAC (UL) operating voltage rating, making it ideal for 230/400 V, 50 Hz networks. At a length of 25 m, it provides extensive reach for large automation systems while maintaining a compact 12.2 mm ± 0.3 mm overall diameter for simplified routing through standard cable trays. Manufactured to meet oil resistance requirements per HD 22.10 appendix A and DIN EN 60811-404, this cable withstands exposure to industrial lubricants and cleaning agents. With color-coded PP-insulated power conductors in black, brown, blue, and yellow/green, it ensures rapid, error-free installation and serviceability.

Performance characteristics of the 8BCM0025.1111A-0 cable are engineered for dependable power transmission and precise signal communication. The four tinned copper stranded power lines exhibit a conductor resistance of ≤ 13.7 Ω/km, minimizing energy loss over long runs. Two twisted pairs of 0.75 mm² signal lines support control and data transfer, shielded by a combination of internal foil and tinned copper braiding with >85% optical coverage to suppress electromagnetic interference. A test voltage rating of 4 kV (wire-shield) validates insulation integrity under transient stress conditions. The inclusion of filler elements in the stranding enhances mechanical stability, while polypropylene insulation maintains dielectric performance across industrial temperature ranges. Oil-resistant jacketing and stringent construction tolerances ensure repeatable electrical performance, even in demanding production environments.

Built for reliability and straightforward integration, the 8BCM0025.1111A-0 cable supports motor power ranges from 0.12 kW to 7.5 kW and is compatible with IP55-rated enclosures. Its flexible yet robust construction facilitates rapid deployment in conveyor systems, packaging machinery, and robotic assembly cells. The combination of power and signal conductors in a single jacket reduces installation complexity and conserves panel space. Durable shielding and oil-resistant materials protect both power and data lines against cross-talk and harsh ambient conditions. This cable is ideally suited for industrial automation applications requiring high-voltage capability, EMI resilience, and proven mechanical endurance.

Contact Us

Email: sales@servosupplier.com

Phone Number: 1-888-551-3082

International: 1-919-443-0207

Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Cable cross section

4x 1.5 mm² + 2x 2x 0.75 mm²

Cable diameter

12.2 mm ±0.3 mm

Cable length

25 m

Cable operating voltage

Max. 1000 VAC (UL)

Cable shield

Tinned copper braiding, optical coverage >85% and foil shield

Cable stranding

With filler elements and foil shield

Cable test voltage (wire-shield)

4 kV

Durability

Oil resistance per HD 22.10 appendix A DIN EN 60811-404

Power lines

4, PP insulation (Black, brown, blue, yellow/green)

Power lines conductor resistance

≤13.7 Ω/km

Power lines variant

Tinned copper stranded wire

Signal lines

4x with 0.75 mm² cross section
