8BCR0001.1121A-0

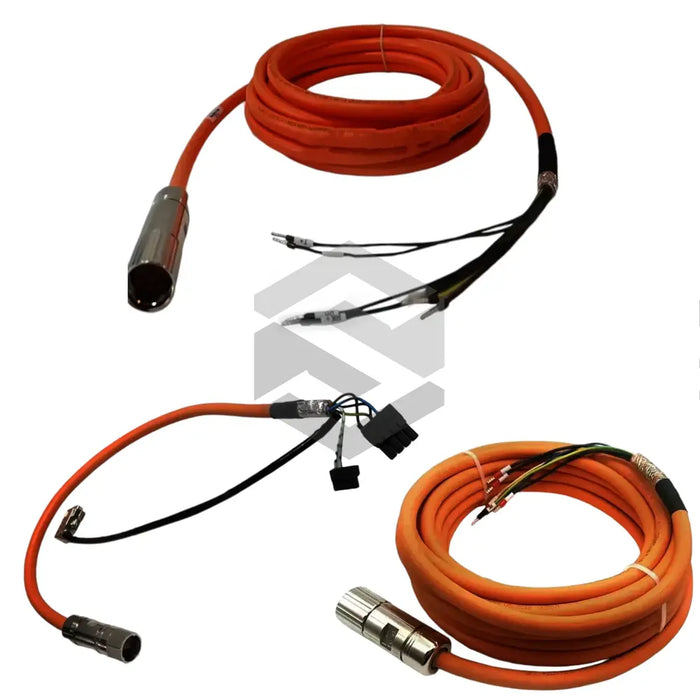

The 8BCR0001.1121A-0 motor cable from B & R Automation belongs to the CM16 Motor Cables series and is engineered for demanding industrial environments. This compact assembly weighs 0.07 kg and measures 1 m in length, delivering a robust yet lightweight solution for motor control and signal transmission. It conforms to an IP20 protection class and operates at a supply voltage of 24 VDC within a maximum Operating voltage: ≤30 V rating, facilitating safe and reliable power delivery. The cable integrates both a 12-pin female series 615 signal connector and a 9-pin male DSUB servo connector, enabling seamless EtherCAT communication and straightforward system integration. Convection-cooled and designed for DIN rail mounting, this cable supports flexible installation in confined control cabinets and machine enclosures.
Performance is optimized through carefully specified electrical and mechanical characteristics. The conductors employ a Tinned copper stranded wire variant in a 3×2×24 19 AWG configuration, ensuring low signal line resistance of ≤86 Ω/km and maintaining an Insulation resistance: >200 MΩ·km for superior electrical isolation. The cable endures a Test voltage Wire–Wire: 1.5 kV and a Test voltage Wire–Shield: 0.8 kV, confirming high-voltage withstand capability under transient stress. Its Drag chain data Acceleration: ≥6 g rating combined with a minimum Bend radius (single bend): ≥20 mm supports dynamic routing in moving machinery. The abrasion-resistant PUR outer jacket contributes to extended service life in harsh industrial atmospheres, while color-coded signal lines ease fault-free termination.
Reliability and integration are hallmarks of the 8BCR0001.1121A-0 cable design. The assembly meets oil resistance per VDE 0472 standards and sustains fewer than 500 mating cycles, ensuring sustained connector performance throughout repeated maintenance. Its IP20 protection and DIN rail compatibility streamline integration into automation cabinets, while convection cooling reduces the need for auxiliary fans. Ideal for industrial automation, robotics, packaging, and material handling applications, this cable delivers consistent signal integrity and power delivery in synchronized motor control systems. Backed by B & R Automation’s engineering heritage, the CM16 series cable offers dependable operation in complex motion-control architectures.
