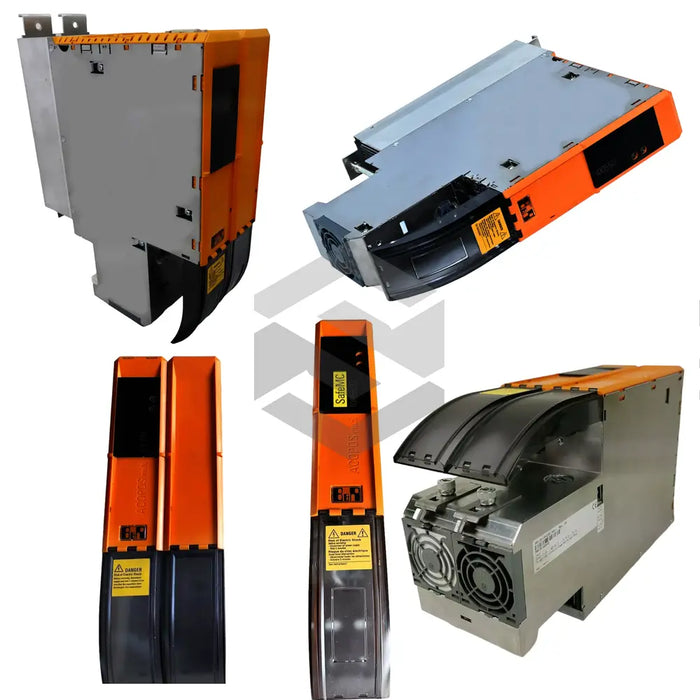

8BVI0055HWD0.000-E
The 8BVI0055HWD0.000-E servo controller from B & R Automation is a precision motion control unit in the 8BVI Servo Controllers series, engineered for demanding industrial automation environments. It delivers a rated power of 2.6 kW and achieves a peak torque of 26.4 Nm at a rated speed of 3000 rpm. The unit features a robust self-cooled design with an IP65 protection rating for dust and water resistance, ensuring reliable operation in harsh conditions. Designed for panel integration, it supports Wall Mounting and weighs just 9.8 kg for compact cabinet layouts. Early-stage protections include Overload protection to safeguard hardware under excessive currents and maintain continuous operation.
Performance is optimized through advanced electrical and power management features: the controller sustains a continuous power consumption of 11.19 kW with a continuous power per motor connection of 5.5 kW, facilitated by a DC bus capacitance of 330 µF that stabilizes energy transfer across channels. The input voltage of 25 VDC ±1.6% and input capacitance of 23.5 µF ensure stable auxiliary bus operation, while the nominal switching frequency of 5 kHz balances switching losses and dynamic response. The integrated Dynamic node allocation (DNA) enables flexible device addressing, and provision for 2 slots for plug-in modules allows modular expansion of I/O or communication interfaces. The controller’s Nominal Voltage of DC 750 V supports high-voltage motor drives, while detailed Max. power consumption: 16 W + PSLOT1 + PSLOT2 + P24 V Out + PHoldingBrake(s) budgeting ensures precise power planning.
Built for seamless integration into industrial cabinets, the 8BVI0055HWD0.000-E delivers consistent performance in a wide range of applications, from packaging lines to robotic assembly. Its IP65 rating and wall-mount form factor facilitate installation in constrained spaces without compromising ingress protection or thermal management. The robust design, including Overload protection and stabilized bus capacitance, translates to extended maintenance intervals and high system availability. Flexible module slots and DNA technology simplify system upgrades and network reconfiguration, supporting evolving automation requirements. Ideal for motion control tasks in automotive manufacturing, material handling, and general purpose industrial automation, this controller provides a reliable foundation for high-performance servo systems.
