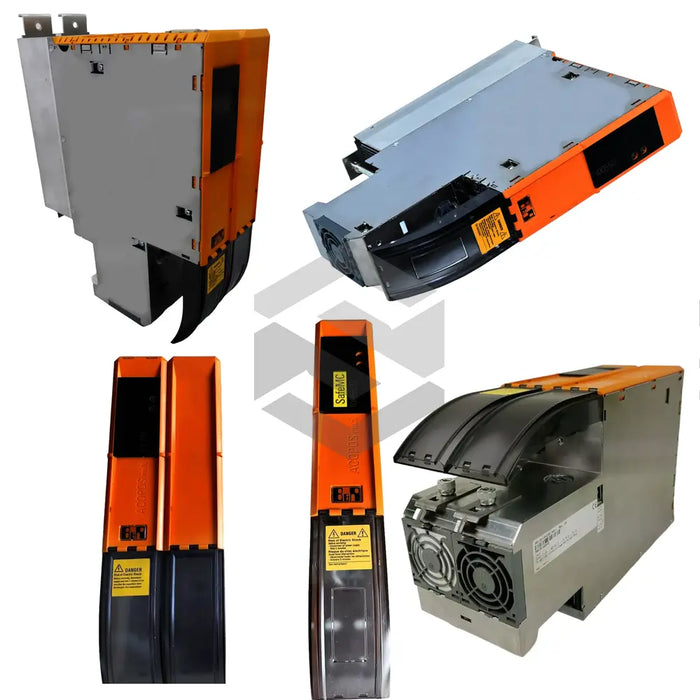

series image of 8BVI0110HWD0.000-1

8BVI0110HWD0.000-1

by B & R Automation
$7,151.51 - $7,151.51
$7,151.51
$7,151.51 - $7,151.51
$7,151.51
In Stock, Ships 3 - 5 Days
The 8BVI0110HWD0.000-1 is a high-performance motor drive module designed by B & R Automation, suited for intensive industrial applications demanding precise control. It manages large power loads with an input voltage of 500-770 VDC and features an output current rating of 15.1 A and 0-480 VAC voltage range, efficiently driving various motors. It supports a rated power of 8 kW and utilizes vector control for precise torque and speed regulation. This module operates within a 0 to 40°C temperature range, ensuring reliability in demanding environments. Its compact design (292 x 110 x 155 mm) and light weight (2.4 kg) allow for easy installation. An Ethernet interface facilitates network integration, and it is protected by an IP20 rating. Operates quietly with 16 kHz max switching frequency and efficient air cooling.
30 Day Warranty
Technical Specifications
  • Manufacturer: B & R Automation
  • Model: 8BVI0110HWD0.000-1
  • Product Type: Motor Drive Module
  • Input Voltage Range: 500-770 VDC
  • Output Current Rating: 15.1 A
  • Output Voltage Range: 0-480 VAC
  • Rated Power: 8 kW
  • Motor Control Method: Vector Control
  • Switching Frequency: 16 kHz
  • Cooling Method: Air Cooling
  • Protection Rating: IP20
  • Dimensions: 292 x 110 x 155 mm
  • Weight: 2.4 kg
  • Communication Interface: Ethernet
  • Operating Temperature Range: 0 to 40 degrees C
